G.B.C. pipe bevelers: advanced solutions for industrial pipe processing
In the metalworking sector, and particularly in pipe beveling operations, precision is crucial to obtain components that meet the standards required in industrial applications. The pipe beveling process is one of the most delicate phases, where machine reliability and efficiency become crucial to achieve a perfect result, both in terms of quality and production speed. G.B.C. pipe beveling machines offer a state-of-the-art solution, designed to meet these challenges with excellent results.
Pipe beveling machines are specialized pipe processing machines, ideal for removing excess material, finishing surfaces or adapting pipes of different sizes to meet assembly requirements. Whether beveling ends, working at complex angles or performing operations on pipes of with dimensions, G.B.C. pipe beveling machines offer an optimal response to each requirement, guaranteeing high precision and productivity.
Pipe beveling machines for high-precision machining: versatility and reliability
G.B.C. beveling machines are robust and versatile machines designed to meet the most demanding requirements of industrial beveling operations. In case of straight pipes or elbows, the G.B.C. range of beveling machines can respond effectively, thanks to their ability to operate on different pipe geometries and sizes. Machining precision is guaranteed by advanced technologies that allow tight tolerances and an excellent surface finish, reducing the waste material and improving the quality of the final product.
G.B.C. pipe bevelers are used in a wide range of industries, including plant construction, metal fabrication, and the processing of pipes for petrochemical and energy plants. Thanks to their ability to machine pipes of large diameters and different thicknesses, these machines are essential for optimizing production times while improving the quality and safety of operations.
G.B.C. beveling machines are available in different versions, depending on machining requirements. These machines allow beveling operations to be performed with minimal human error and optimized production times. They also offer great flexibility, allowing the operator to adapt the settings according to the specific characteristics of the pipes and operations to be performed.
Mini series for pipe milling and beveling: versatility and precision in industrial operations
G.B.C.’s Mini K line offers versatile and precise pipe milling and beveling solutions, ideal for industrial applications such as the manufacture and service of boilers, heat exchangers and fluid handling equipment. The Mini K is a compact machine that can bevel pipes with internal diameters from 20 to 42 mm (optional 12.4 mm), available in pneumatic, electric or battery-powered versions. Due to its lightweight construction and operating speed, it is perfect for small installations such as boilers and heat exchangers. This machine allows beveling and facing with high precision, simplifying the preparation for welding.
The Mini K with Lever speeds up the work cycle thanks to its lever-operated feeding, reducing operator time consumption and effort. It is ideal for serial operations on metal pipes.
The Mini K OD, with external clamping, is designed for pipes with an outside diameter from 10 to 60 mm and preserves the integrity of the pipes ID, making it perfect for applications in sensitive areas such as the medical and food industries.
The Mini Auto Compact is an automatic machine designed for repetitive operations on large heat exchangers. Equipped with an adjustable automatic feeding system and a limit switch, it offers high performance and precision in repetitive machining operations.
Finally, the Mini C40 is an ultra-compact machine, ideal for tight spaces, with a body width of only 40 mm.
It is perfect for machining in tight spots and can be used on pipes with very small internal diameters from 12.4 mm.
TC Series: compact and precise piping solutions
The TC40 and TC73 portable beveling machines are ideal solutions for machining in confined spaces, mainly due to their versatility and precision. Both machines offer high performance and are perfect for industrial applications and sensitive sectors such as medical and food processing, where the quality and integrity of pipes must be preserved during the bevelling operations.
The TC40 pipe beveling machine is a portable machine with external clamping system, designed to work on pipes with an outside diameter from 10 to 48.3 mm (0.39″-1.9″). This pipe beveling machine is particularly suitable for applications where the internal pipe clamping solution is not possible, and in case of extremely confined spaces. The TC40 is available in pneumatic and electric versions, offering great flexibility according to operational requirements. Thanks to its external clamping system, the TC40 beveling machine is perfect for medical and food applications, where the pipe ID surface must remain in pristine conditions.
The TC73 pipe beveling machine is an external clamping machine designed for pipes with an outside diameter from 10.3 to 73 mm (0.40″-2.87″). The TC73 is ideal for work in spaces where it is not possible to use the internal clamping system, while still maintaining high accuracy in beveling operations. The machine offers a precise machining result, allowing perfect joints between pipes.
Also available in pneumatic and electric versions, the TC73 is perfect for operations on tube panels where the working spaces are very confined, in pipe repairs and construction sites. The quick lever lock and feed by handwheel ensure and easy operativity, while the interchangeable jaws allow the machine to be easily adapted to different pipe diameters.
Boiler Series: advanced solutions for pipe processing in boilers and industrial plants
The Boiler series is a versatile and powerful solution for pipe processing in the industrial sector. These devices are ideal for pipe beveling and facing applications, mainly in sectors such as Oil & Gas, boiler manufacturing and complex plant maintenance. With the ability to operate on pipes with diameters ranging from 23 mm up to 207 mm, the Boiler unit can handle a wide range of pipes, even with considerable thickness.
Boiler machines offer excellent performance thanks to a 4-slots chuck, which allows multiple bevelling operations to be performed simultaneously and with great precision. In addition, they are available in pneumatic, electric and battery-powered versions, to meet all operational needs, from those in the workshop to those in hard-to-reach work spaces.
The ‘Superboiler T5’, for example, is a powerful model that allows precise bevels to be obtained even on the thickest schedules. This machine can be equipped with the pneumatic clamping system (optional) to speed up the setting process and optimize repetitive operations. In addition, the ‘Superboiler T5’ can be equipped with optional shafts for elbows, tees and flanges, extending working capacity even further.
Broadly speaking, the Boiler series is designed for bevelling all kind of materials such as carbon steel, stainless steel, duplex, Inconel and other alloys. Their toughness, combined with efficiency and technological innovation, makes them essential for maintenance and prefabrication operations in heavy industrial environments, ensuring high quality and precision results every time.
Supermaxi and Hypermaxi series: high-precision machining on large diameter pipes
G.B.C.’s Supermaxi and Hypermaxi pipe beveling machines offer high-precision solutions for machining large diameter pipes in industries such as oil & gas and nuclear power. These machines are designed for industrial applications that require high quality bevels on thick wall, guaranteeing excellent results in on-site job sites and welding shops.
The Supermaxi 4_16 is ideal for machining pipes with diameters from 3.7″ to 12.5″, extendable up to 16.45″ with the optional kit. The six-wide-point clamping system ensures stability and precision during machining, reducing vibration and guaranteeing reliable results. The innovative chuck allows the use of standard tools and tool holders with interchangeable tips, suitable for V-bevels, J-bevels and other complex bevel geometries.

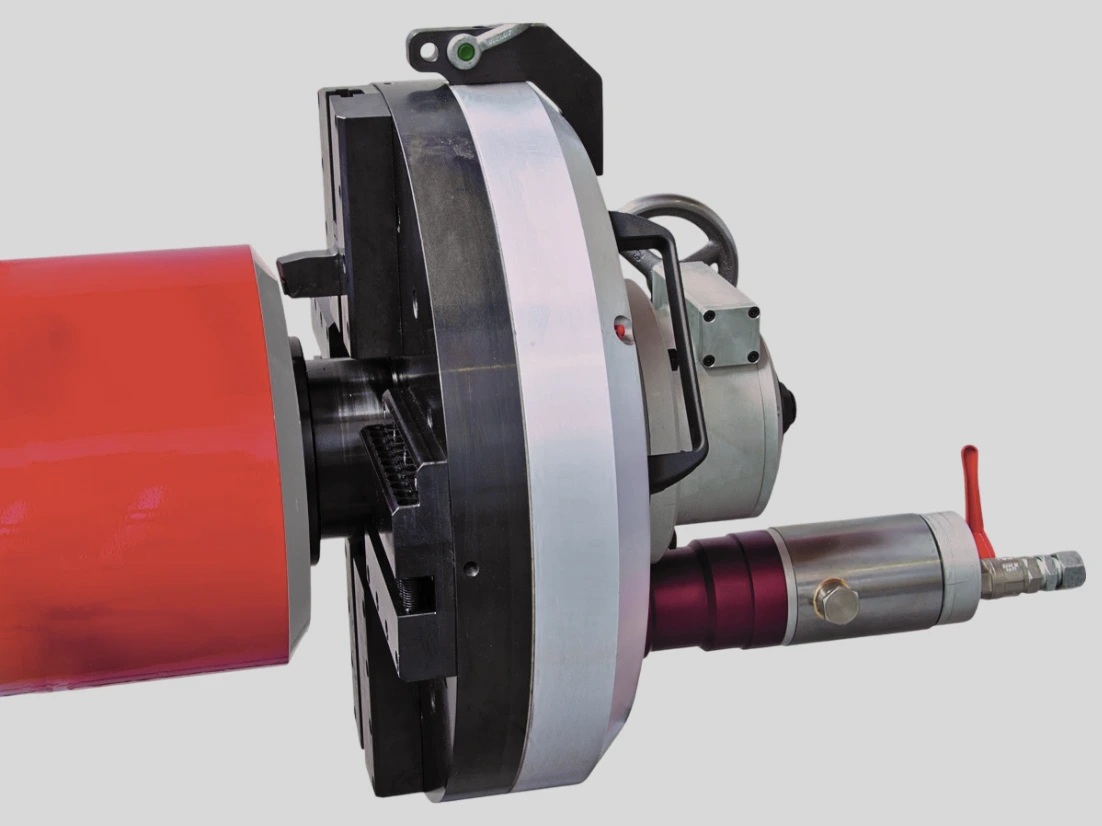

The Supermaxi 7_24, with a working range of 7.08″ to 19.84″, can be extended up to 24″. The advanced feed and drive system ensures smooth and precise machining. The six-wide-point clamping maintains the unit stable during the beveling, reducing the vibrations and margin for error. Interchangeable tools and a sturdy design make this beveling machine ideal for industrial applications in sectors such as oil & gas, nuclear energy and offshore construction.
The Hypermaxi 20_40 is designed to work on pipe diameters from 20″ to 36″, extendable up to 40″ with an optional kit. This beveling machine is particularly suitable for machining large pipes, offering high material removal capacity and superior performance. With its massive clamping system and new feed system, the Hypermaxi 20_40 guarantees a precise and consistent machining result, ideal for applications in complex industries such as oil & gas and nuclear energy.
In terms of power supply, the Supermaxi 4_16 and Supermaxi 7_24 beveling machines are available in pneumatic, hydraulic, electric or brushless versions, while the Hypermaxi 20_40 is available with hydraulic, pneumatic or brushless power drive.
G.B.C. beveling machines: for every type of bevel and precision
G.B.C. pipe beveling machines are the ideal solution for those looking for highly specialized machines for pipe processing. Thanks to their ability to handle complex machining operations on pipes of different sizes and geometries, these machines are able to respond effectively to all industrial processing needs.
The main advantages of G.B.C. beveling machines include their ability to process pipes of different sizes and thicknesses, high machining precision, quality materials and long machine life. These aspects make G.B.C. beveling machines a key investment in optimizing production processes and improving the final quality of products.
The versatility and reliability of these machines make them ideal for all types of machining, from the simplest to the most complex. Choosing a G.B.C. beveling machine means betting on advanced technology that guarantees precision, speed and high quality results, supporting the need for productivity and competitiveness in the industrial market.
Choose the G.B.C. beveling machine that meets your needs
Each G.B.C. beveling machine is designed to optimize machining operations, offering solutions for a wide range of industrial applications. Whether you are looking for an automatic machine or a manual solution, G.B.C. beveling machines offer the ideal solution.
Choosing the right beveling machine depends on the specific needs of your production. G.B.C. beveling machines, thanks to their precision, efficiency and durability, represent a safe investment to optimize your production and improve the quality of your products. With G.B.C., you are sure to choose a state-of-the-art solution that will help you achieve long-lasting and highly efficient results.
Contact us now to receive more information about our products.
