Choosing a pipe cutting and beveling machine depends on five key criteria: the diameter and wall thickness of the pipes to be processed, the type of material (carbon steel, stainless steel, duplex), the required production volume, the working environment (workshop or construction site), and the available budget. Cold pipe-processing machines ensure precision without thermal distortion, allowing the preparation of welded joints compliant with regulations.
Evaluating the technical characteristics of the pipes to be processed
Selecting a machine begins with analyzing the pipe dimensions. The market offers solutions covering a very wide range: from pipe beveling machines for internal diameters of 12 mm to pipe cutters for diameters from 60 to 100 inches. Heat exchangers and boilers require compact milling machines that work on pipes from 20 to 60 mm. Large pipelines in the oil & gas sector instead require specific machines, equipped with hydraulic drive systems.
Wall thickness represents another critical parameter. Professional machines handle ranges from 1 mm up to 100 mm, with automatic feed systems for larger thicknesses. Regarding materials, modern cold pipe cutters—such as those produced by GBC—can work on carbon steel, stainless steel, duplex, Inconel, and other special alloys. High-speed steel cobalt tools (HSS 8% Co) are suitable for all types of steels and special alloys, with interchangeable inserts adaptable to different applications.
Comparing cutting and beveling technologies
Cold mechanical milling
Mechanical milling is the reference technology for high-quality preparations. Its main advantages include the complete absence of heat-affected zones (HAZ = 0 mm). Cold milling uses carbide inserts that remove material without generating heat.
Another advantage is the ability to produce highly precise bevels, with standard angles of 30°, 37.5°, and 15° for internal bevels, as well as 90° for facing. Angular precision is crucial because joint preparation is regulated by the UNI EN ISO 9692 standards, which specify geometric characteristics based on the welding technique and wall thickness.
Beveling creates an angle at the end of the pipe, allowing molten metal to flow between the edges for stronger adhesion. Without correct preparation, the weld does not penetrate sufficiently, resulting in weaker joints that may leak or fracture.
Alternative technologies
Comparing mechanical milling with thermal technologies highlights significant differences. While plasma and laser cutting offer higher speeds on thin sheets, they present critical limitations on thick-walled pipes: thermal distortion, the need for post-cut grinding, and incompatibility with certain high-alloy materials. Cold milling is the only universally applicable technology for all metallic materials, without limitations, and ensures greater precision.
Portable or stationary: which type to choose

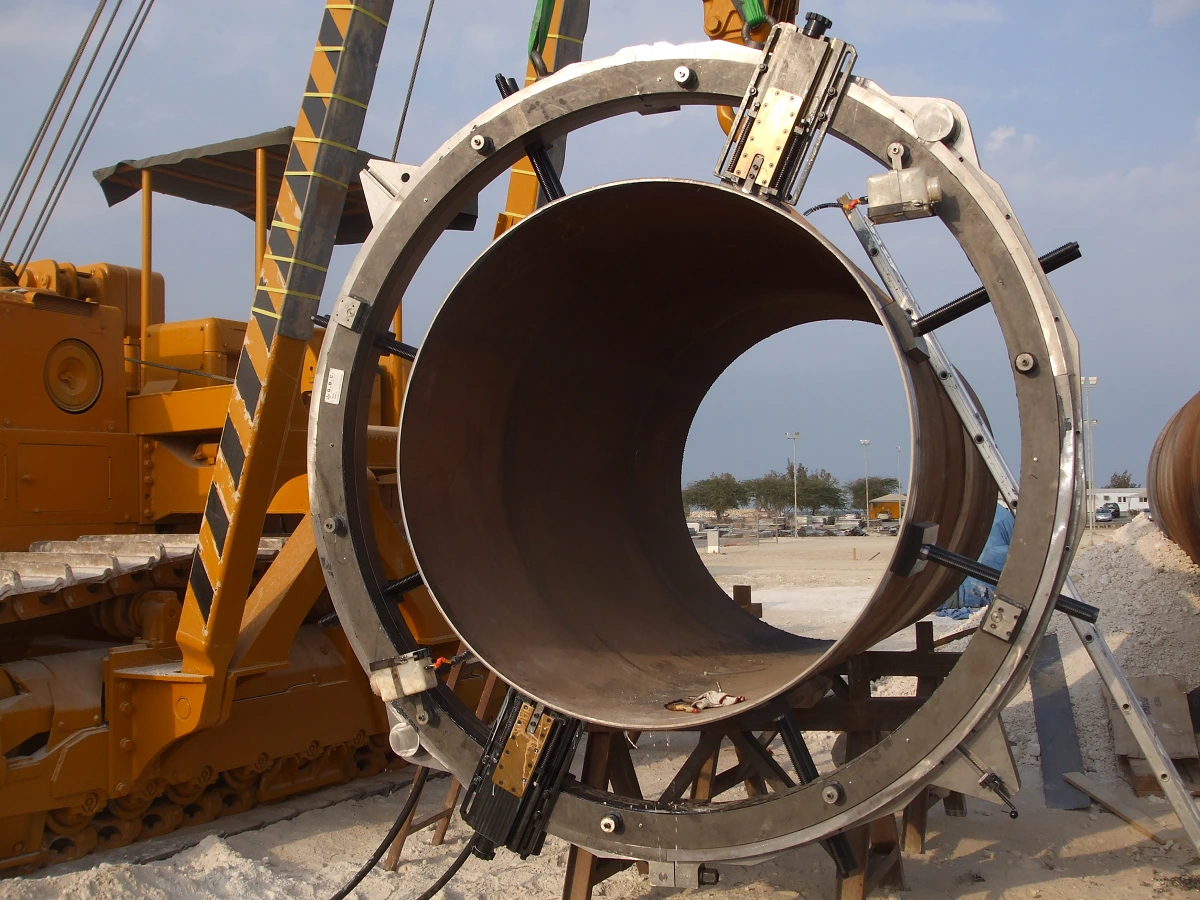

The choice between portable and stationary machines depends on the main application. Portable machines are essential for construction sites, pipelines, and on-site installations where mobility is a primary requirement, and they can be operated by a single worker.
Pipe beveling machines can clamp internally or externally. Internal clamping uses expandable jaws inserted into the pipe, while external clamping applies pressure from the outside. This model is also particularly suitable for medical and food-processing applications, where it is essential that the internal surface of the pipe is not altered in any way, so as not to compromise the quality and safety of the material flowing through it.
Stationary machines provide greater power and precision for serial production in workshops. Stationary beveling machines use self-centering, anti-deformation clamping systems that ensure stable and secure pipe holding. Automatic clamping-force control ensures higher precision and work quality.
Drive Systems: Electric, Hydraulic, or Pneumatic
The choice of drive system depends on the working environment and required power. Professional pipe cutters and pipe bevelers may have pneumatic, electric, hydraulic, or brushless motors, depending on practical needs.
Electric motors offer precise speed control, low operating costs, and reduced maintenance. They are suitable for workshop use where electrical supply is available and are ideal for medium-small diameters (1–36 inches). Brushless versions provide higher efficiency and reduced noise. Some milling machines are also available with battery power (e.g., GBC Mini or Boiler series), offering portability for hard-to-reach locations.
Pneumatic power is a valid alternative, providing safety in explosive environments or where electricity is not available.
For large-diameter pipes and significant wall thicknesses, hydraulic drive is often the most suitable solution. It provides the torque required for heavy-duty applications and is frequently used in the nuclear sector.
Processing precision and repeatability
The quality of preparation directly affects the strength of the welded joint. Welding standards regulate joint preparation types based on the welding technique, wall thickness, joint shape, and required performance.
Some machines integrate copying systems that compensate for irregularities and ovalization of the pipe, or they can be equipped with tool holders with copying systems and automatic feed devices. Manual feed, although economical, requires skilled operators and introduces variability in final quality. Programmable automatic systems allow storing parameters for different materials, ensuring repeatability even with frequent production changes.
Bevel angle precision is essential: whether it is 37.5° or more specific details, it is crucial to remain within tolerance limits to achieve a strong weld. Bevel length must be uniform around the entire circumference, and the surface finish must be smooth, without rough edges that could affect weld quality.
Budget and return on investment
Cold mechanical pipe cutters and beveling machines represent a lower investment compared to laser systems, with reduced operating costs. The use of carbide inserts reduces production costs thanks to their long tool life.
Return on investment should also consider savings from reduced rework and waste. Operating costs to include in calculations are consumable tools, routine maintenance, and operator training.
For specific projects or temporary production peaks, rental is a valid alternative to purchasing, enabling access to advanced technologies without full upfront investment.
Technical support and spare parts availability
Choosing a supplier goes beyond the technical characteristics of the machine. After-sales support and immediate spare-parts availability ensure production continuity. For over 40 years, GBC has designed and manufactured both standard and customized machines, overcoming limitations related to thicknesses and geometries.
This customization capability allows us to tackle specific applications requiring special preparations. Tools are available for the most common bevel angles and can be manufactured on request for particular needs.
Optional kits expand machine capabilities, increasing the diameter range. We also provide training and support on-site or by phone, as well as qualified technical interventions on site to identify solutions tailored to specific situations.
Contact GBC to receive personalized consulting based on your needs.
