The world of large pipelines requires years of research and development, and large diameter pipe cutters are a complex challenge. The quality of the cutting and preparation of pipe ends determines the reliability of systems critical to the global economy. When we’re talking about pipes ranging from 1 inch to 43 inches in diameter, we enter a dimension where the traditional artisanal approach reaches its limits. It’s no longer just a matter of manual skill or experience, but the ability to manage forces, masses, and precision that require specialized technological support.

The construction and maintenance of modern pipelines presents unique challenges. Interventions must be rapid to minimize downtime and precise to ensure the seal of joints. They also often need to be performed in harsh environmental conditions, far from equipped workshops. This creates the need for equipment that combines the power needed to cut large thicknesses with the portability required for direct field operations.

When it comes to large-diameter pipe cutting, a quality cut is measured in terms of final quality and operational safety. A poorly prepared end can compromise the tightness of a joint, causing leaks that, in some contexts, can have devastating environmental and economic consequences. For this reason, when it comes to large-diameter pipe cutting, choosing the right equipment is never just a technical decision, but a strategic one.

Operational flexibility: adapt to any work scenario

True innovation in the pipeline equipment industry lies in the intelligent combination of proven solutions to create systems that adapt to specific needs. These are machines that must function perfectly under any conditions. This means whether in a climate-controlled workshop or in a 50°C desert, with a stable power supply or compressed air from the construction site.

Why is power versatility crucial in pipeline applications?

Power versatility allows the same machine to be used in completely different contexts. Some scenarios? Electric in the workshop for maximum precision and pneumatic on construction sites where compressed air is always available.

The evolution of modern equipment has led to modular systems that maintain the same quality performance regardless of the energy source used. It’s no longer a matter of choosing between power and portability, but rather of having a single tool capable of dynamically adapting to operating conditions.

This design philosophy responds to a concrete need: in large infrastructure projects, working conditions are constantly changing. Having equipment that adapts without compromising quality means maintaining operational continuity in any scenario.

In this context, intelligent automation does not eliminate the human factor, but enhances it. The experienced operator maintains complete control of the operation but can focus on the critical aspects. These include setup, quality control, and parameter optimization, thus delegating precise and repeatable cutting to the machine. The result: less physical fatigue, greater focus on the details that matter, and superior performance even in the most challenging conditions.

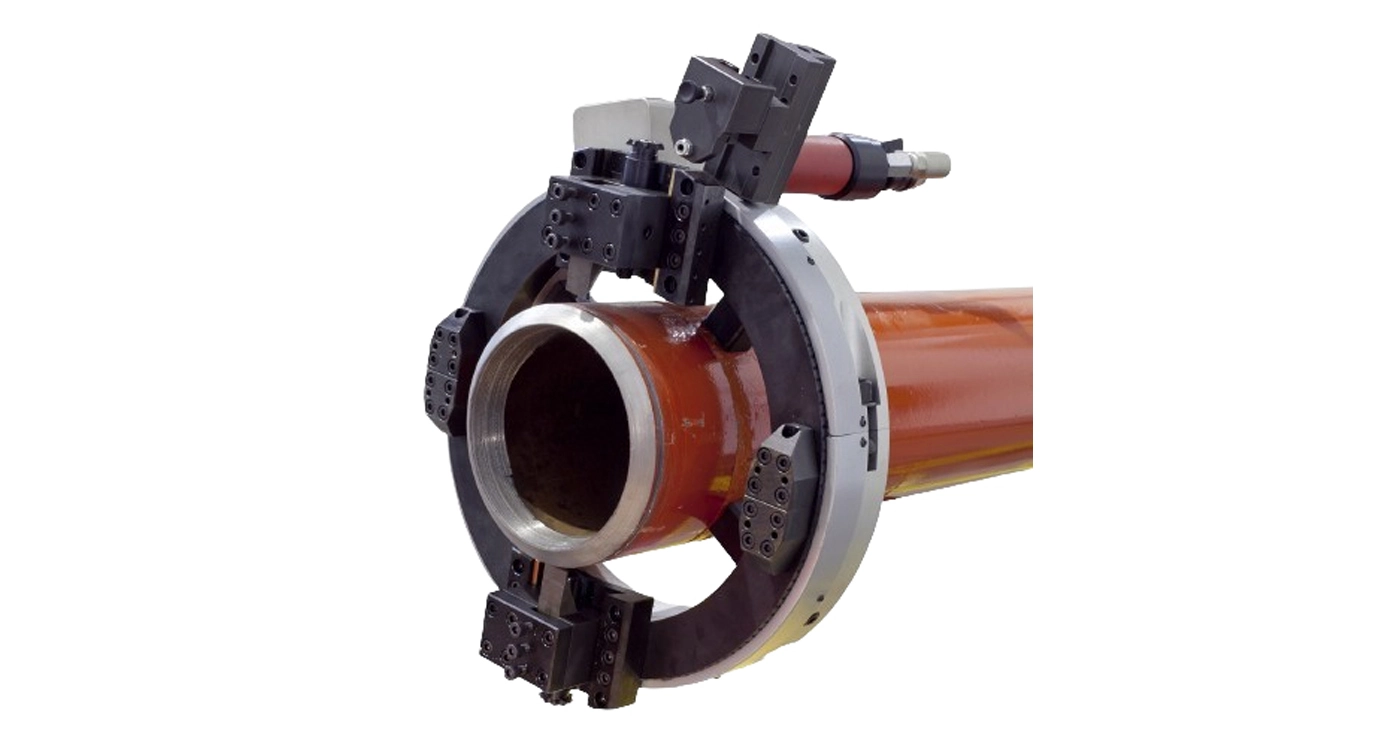

MCA Cutter, the pipe cutter for large diameters: engineering for major challenges

The most distinctive feature of the MCA Cutter is its two-section machine body. Since it’s a pipe cutter for large diameters, this isn’t just a logistical convenience, but an operational revolution. It means you can install the machine anywhere on a continuous pipeline without having to cut or move anything. It means you can work in spaces where a traditional monoblock machine simply wouldn’t fit.

How do you manage perfect centering on such variable diameters?

The MCA Cutter uses 4- or 6-point clamping systems, selected based on the diameter being machined. This ensures uniform distribution of clamping forces and optimal centering regardless of the diameter.

The operating range from 1″ to 43″ outside diameter covers virtually all standard industrial applications, but how it is managed makes all the difference. Ten different models, each optimized for a specific size range, ensure you always have the right machine for the job. This avoids unnecessary oversizing or performance compromises.

The machine’s aluminum body construction isn’t just an aesthetic choice. It’s the result of careful calculations to achieve the best rigidity-to-weight ratio. A lightweight machine is easier to handle and position, but it must maintain the rigidity required for precise cuts even on tough materials. The high-quality aluminum used for the MCA Cutter resolves this apparent contradiction.

The automatic feed tool holder system eliminates one of the most critical variables in cold cutting: consistent feed speed. Too slow and you risk hardening the material; too fast and you compromise the surface finish. Automatic control always maintains optimal parameters.

Power and control: analyzing technical performance

Behind the apparent simplicity of the MCA Cutter lies sophisticated engineering that emerges from an analysis of the technical specifications. Maximum torque varies from 141 Nm on the smaller models up to over 2500 Nm, a sign of scalable and optimized design.

What is the importance of constant radial feed in all versions?

The radial feed rate of 0.083 mm per revolution, consistent across all models, ensures consistent surface quality regardless of the diameter being machined. This parameter, combined with the three different power sources (hydraulic, pneumatic, and electric), determines the uniformity of the cut across the entire circumference.

The weight varies from 18 kg for the MCA1 to 180 kg for the MCA36, and this may seem like a limitation. However, each model is optimized for a specific diameter range, and the weight is proportionate to the size of the tubes being machined.

The ability to equip the tool holders with copying systems to compensate for tube ovality is an added value for applications on existing pipes. This system maintains a constant cutting depth even on deformed or oval pipes.

A pipe cutter for large diameters: an investment that transforms your business

Investing in an MCA Cutter means making a choice that goes beyond purchasing equipment. It means completely redefining the approach to processing large pipelines, with impacts that ripple across the entire company organization.

The immediate return is evident: what previously required large teams and lengthy lead times can now be completed with a smaller number of operators in a fraction of the time. But the most significant benefits emerge in the medium to long term. The ability to work directly on live pipelines, without dismantling entire sections, opens up entirely new market opportunities.

What advantages does the divisible body bring to large infrastructure projects?

The divisible body eliminates the need for scheduled downtime for pipe disassembly. It also dramatically reduces intervention times and allows work to be done on otherwise inaccessible pipeline sections. This translates into more profitable contracts and happier customers.

Furthermore, modularity is essential for a large-diameter pipe cutter. To meet these needs, the MCA series allows for a scalable machine fleet. You can start with a model for your most frequent applications and gradually add other sizes to cover increasingly wider ranges. Each machine maintains the same operating philosophy, so the learning curve for staff is minimal.

Customization is particularly important in specialized applications. Every large infrastructure project has its own specific requirements: special materials, tight tolerances, extreme operating conditions. The ability to adapt tools and accessories to the customer’s specific needs transforms the MCA Cutter from a simple piece of equipment to an integrated solution.

Furthermore, the reputation derived from the use of professional equipment is reflected in the ability to attract high-end customers. In this sector, quality takes precedence over price and margins are consequently higher.

The strategic partner for winning decisions: the G.B.C. experience

Choosing an MCA Cutter means entering an operational dimension where every detail can make a difference. It’s not just about selecting a machine with the right specifications, but about building an operational strategy that maximizes business opportunities.

GBC doesn’t simply supply equipment. Rather, we accompany customers on a growth journey that begins with an analysis of their specific needs and extends throughout the machine’s operational life. Our experience in the industry allows us to anticipate issues that might only emerge after months of use, a prevention that avoids costly downtime.

Pre-sales consulting always includes an in-depth analysis to identify the MCA model best suited to your organization and how to best integrate it into your organization. This approach ensures that the investment generates immediate benefits, without lengthy break-in periods.

Technical support is designed to meet the needs of those working on large projects, where every hour of downtime can cost thousands of euros. Our specialized technicians are intimately familiar with every aspect of MCAs and can provide immediate remote support or direct intervention when necessary.

When an emergency jeopardizes project deadlines, or when a technical problem stalls a construction site, you know you can count on a team that understands the importance of time in industry. +39 030 745 11 54 isn’t just a phone number; it’s your direct line to a solution. Emailing sales@gbcspa.com immediately activates our specialized support network.

The free consultation we offer isn’t a sales pitch, but our way of demonstrating expertise and professionalism. Because we know that when you invest in an MCACutter, you’re investing in the future of your company, and this future deserves our utmost attention.

Contact us today for a personalized assessment of your needs. The right MCA for you already exists; we just need to identify it together.
