Industrial pipe stands: fundamental for the support and handling of metal pipes

In the metal working, welding and heavy carpentry industries, handling large diameter pipes requires reliable, stable and durable tools. Industrial stands play a key role in these operations: they serve as support for the positioning, alignment and handling of pipes during all stages of the production process.

In the workshop or on site, choosing the right tripod is not only a matter of practicality, but also of safety and precision. A poorly designed or undersized tripod can generate instability, with serious consequences for the integrity of materials and the safety of operators.

To meet these needs, G.B.C. proposes the PJQ ‘QUATTRO’ STANDS, designed to support heavy loads and facilitate the handling of large metal pipes.



Why choose professional stands for pipe support

Using high performance industrial stands in the processing of steel or stainless steel pipes means ensuring:

• Stable support during cutting, chamfering or welding;
• Precision in alignment, reducing errors and rework;
• Simplified handling, even on uneven surfaces;
• Operator safety and protection of the material being processed

In contexts where you handle thick, heavy or long pipes, such as in the energy, petrochemical or naval sectors, it is essential to rely on professional adjustable stands that can be customized with specific accessories. G.B.C.’s PJQ are a modular, robust and extremely versatile solution for this type of activity.

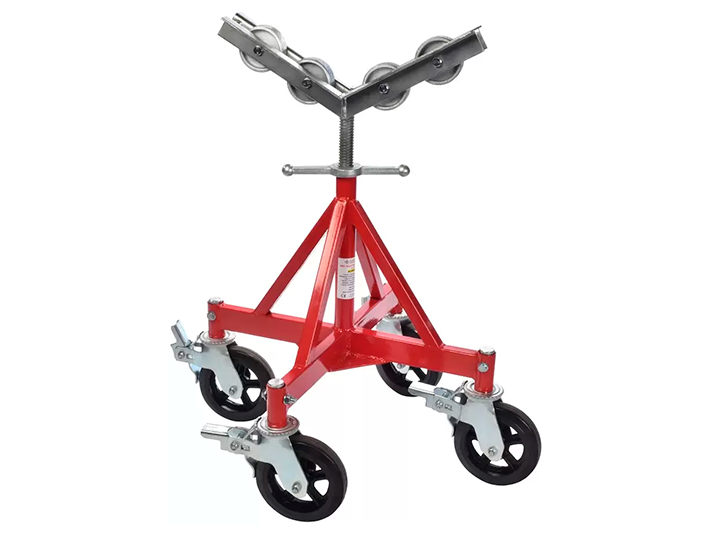

PJQ QUATTRO’ STANDS: the heavy-duty G.B.C. industrial pipe stands

The PJQ ‘QUATTRO’ STANDS are designed for the support and handling of pipes of large diameter and thickness, in a safe and efficient way. Each tripod has a head load capacity of up to 2500 kg and is suitable for pipes up to 36″ in diameter, making it ideal for high-duty workshops and construction sites.

Main features:

1. Load capacity: up to 2500 kg per unit;
2. Height adjustable to suit any operating requirement;
3. Large V-head as standard for stable and versatile support;
4. Optional swivel wheels, lockable, to facilitate the transport of the pipe within the site;
5. Compatibility with carbon steel and stainless steel.

The PJQ stands can be used as fixed supports, but thanks to the available accessories they become dynamic tools for transporting long and heavy pipes on different surfaces. They are supplied with levelling bearings to work even on uneven floors, improving the overall stability of the system.



Optional accessories: customize your PJQ industrial pipe stands

One of the main strengths of the PJQ system is its modularity.  G.B.C. offers a range of accessories to adapt the trestles to specific environments and materials, including:

Optional heads:

• Large V-head (LVH) – For pipes from 1″ to 36″, carrying capacity 2500 kg;
• Support (SSC4) – Ideal for stainless steel pipe machining



Handling wheel kit:

• Steel wheels (SWK4 / SWK4SS) – Load capacity 2000 kg, maximum mechanical strength;
• Nylon wheels (NWK4) – Load capacity 450 kg, light and smooth;
• Polyurethane wheels (PWK4) – 600 kg load, excellent vibration absorption;
• Handling ball kit (BTK4/ BTK4SS) – For multi-directional rotation, up to 600 kg.



Thanks to these components, each PJQ trestle can be customized for the type of pipe, working environment and required handling mode.



Safety and performance in pipe handling

Choosing the right industrial stands is crucial to avoid accidents, improve work ergonomics and reduce handling times. PJQ ‘QUATTRO’ STANDS are designed to the highest quality standards and offer a reliable solution for heavy duty work.

In combination with other G.B.C. technologies – such as chamfering machines, grinding machines or pipe cutters – the PJQ stands complete the line of professional equipment for the processing of metal pipes, guaranteeing maximum operational efficiency.



How to choose the right industrial tripod: 5 basic technical criteria

Choosing the right industrial tripod for your operational needs is a crucial step to ensure safety, efficiency and durability. Not all stands are the same: in addition to the load capacity, there are several technical parameters to consider for a conscious and efficient purchase. These are the main criteria to be assessed:



Effective load capacity	It is not enough to know the nominal weight of the pipe: it is essential to take into account any dynamic loads, vibrations or movements during operations. The load capacity of the tripod must always exceed the weight to ensure an adequate safety margin.
Compatibility with pipe diameter	Each tripod has an optimal range of supported diameters. For large pipe operations (up to 36″), it is essential that the support provides a wide, stable and easily adjustable base to ensure precise alignment.
Type of working surface	On the construction site, the surface may be uneven, inclined or even mobile. It is therefore important that the tripod has levelling feet or adjustable supports to ensure stability even in suboptimal conditions.
Frequency and mode of handling	If the pipe has to be moved frequently, it is advisable to opt for trestles with wheel-mounted options, as in the PJQ system. In static environments, a fixed tripod with higher load capacity may be preferred.
Material and chemical compatibility	For environments with high humidity or corrosive agents (such as marine workshops or chemical plants), it is preferable to choose trestles with stainless steel components or dedicated accessories, to avoid the early degradation of materials.



Choosing the right tripod not only improves productivity, but also prevents accidents and reduces the need for extra maintenance. Modular models such as the PJQ ‘QUATTRO’ STANDS offer an excellent basis for adapting to different operating conditions with ease.



Bring stability and mobility to your workshop: choose PJQ by G.B.C.

If your company operates in the processing of large metal pipes, both in workshops and on industrial plants, and you need a reliable, robust and versatile solution for the support and movement of these heavy materials, PJQ ‘QUATTRO’ STANDS by G.B.C. are the perfect answer to your needs. Thanks to their modular construction, large load capacity (as mentioned, up to 2500 kg!) and the possibility of customizing them with a wide range of accessories, PJQ stands offer a unique combination of stability, mobility and ease of use. Perfect for handling pipes with diameters up to 36″ and suitable for uneven surfaces, they are ideal for applications in the energy, naval, chemical and all those realities that require a safe and high-performance support for handling and welding operations.

Contact us today to request a free quote or receive tailored technical advice, so you can find the optimal configuration for your work environment. Discover how PJQ stands can transform your daily operations, ensuring excellent performance and a safe and smooth handling of pipes. With the PJQ stands, each pipe finds its ideal support and your workshop is prepared to face any production challenge.
