Pipe cutting and beveling machines perform two essential end preparation operations: cutting the pipe to the specified length, and beveling, which creates the edge profile to facilitate proper penetration of the molten metal during welding. These operations ensure mechanically strong joints that comply with regulatory standards. The main types of pipe cutting and beveling machines on the market are cold pipe cutters and pipe beveling machines, specifically designed for beveling operations. Both are available in portable or stationary configurations depending on application needs.



What are pipe cutting and beveling machines

When it comes to metalworking, pipe preparation before welding makes the difference between a durable joint and one that fails. For this reason, cutting and beveling machines play a key role.

Cutting separates the pipe to the desired length, leaving a clean, perpendicular surface free of burrs or irregularities. On the other hand, chamfering (the technical term for beveling) shapes the edge, creating a specific profile. This seemingly small detail has a precise function: it creates a space where the molten metal from the weld penetrates deeply, increasing the joint’s strength.

There are various processing techniques, each with specific advantages. In particular, cold cutting and beveling do not produce sparks, making them indispensable in environments at risk of fire or explosion. Among the main processes are butting, which is a 90° perpendicular cut, and beveling, which involves V, J, Y, or K angles to prepare the pipe for welding.

G.B.C. pipe cutters can handle diameters from 1″ to 100″ and work any material, from carbon steel to Inconel, with no thickness limits, ensuring high precision and repeatability in every application.



Pipe bevelers: features and applications

While pipe cutters, thanks to the use of various tools, can perform both cutting and chamfering, pipe beveling machines focus exclusively on cold beveling.

These machines can adopt two clamping systems: internal or external. In internal clamping, expanding jaws open inside the pipe, ensuring a stable clamping; in external clamping, the pipe is tightened from the outside, completely preserving the internal surface. This latter configuration is essential in sectors such as the medical or food industries, where even minimal internal contamination could compromise the pipe’s suitability for its final use.

The range of G.B.C. pipe beveling machines covers a wide range of diameters, starting from just ½” (12.4 mm) up to 40″ (1016 mm). Each model is designed to meet specific application needs: the Mini K is dedicated to processing pipes from 20 to 42 mm, typically used in heat exchangers; the Boiler 1-4 K extends its operating range to diameters between 23 and 108 mm; the Hypermaxi, a model with internal pneumatic locking, reaches the standard 36″ diameter, essential in complex and heavy-duty industrial applications, and can reach up to 40″ with the use of the specific optional extension kit.



When to use a pipe beveling machine

The answer is clear: pipe beveling machines become indispensable whenever the precision of the bevel is crucial to the quality of the final joint. A prime example is heat exchangers, where hundreds of pipes must be welded to tube sheets: even a single uneven bevel can compromise the mechanical seal and overall quality of the system. The same principle applies to mass production, where automatic pipe beveling machines repeat the same process thousands of times, ensuring consistent tolerances and high repeatability—results that are difficult to achieve with manual procedures.

Learn more about pipe milling in our dedicated article.





Industrial Pipe Cutting and Beveling Machines: Portable and Stationary Models

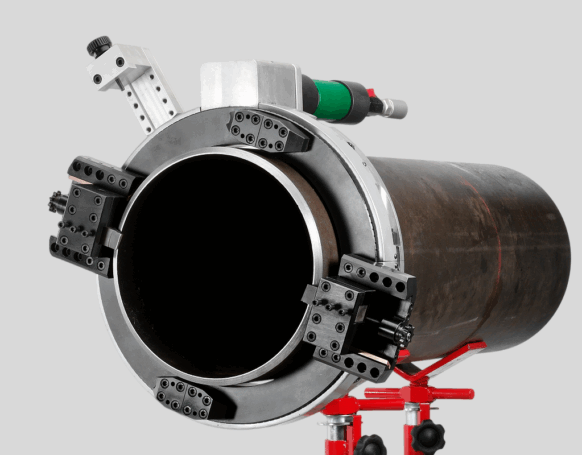

The choice between portable and stationary machines depends primarily on the work site and the pipe size. Portable pipe cutters with a split frame offer a significant advantage: the machine body opens into two parts, allowing installation on pipes already laid in pipelines or existing systems. For applications in shipyards, offshore platforms, or field maintenance, this versatility is essential.

Stationary pipe bevelling machines, on the other hand, require the pipe to be brought to the machine. However, this apparent limitation translates into an operational advantage: increased processing speed and consistent repeatability, essential features in serial production in the workshop, especially when processing pipes with large diameters and wall thicknesses.

The drive option must also be chosen based on the work environment. Pneumatic motors require the presence of a compressor but guarantee maximum safety in potentially explosive environments. Electric motors offer great ease of use, as they do not require additional auxiliary equipment. Finally, the hydraulic motorization ensures high and constant torque across all rotation speeds and is extremely reliable even in the most demanding operating conditions.





How to choose the right machine

The first factor to evaluate is the pipe material being machined. Each alloy requires tools made or coated with materials suited to its mechanical and thermal characteristics.

For example, carbon steel can be effectively machined with tools made without special coatings. However, when working on stainless steels or tougher alloys such as duplex, superduplex, or Inconel, it is necessary to use a carbide or high-performance coating, sometimes even reducing the cutting speed appropriately to avoid overheating both the tool and the material.

GBC can produce any type of tool, depending on the material being cut and beveled.

The work environment naturally dictates one solution over another. In the workshop, where we produce high volumes and pipes are conveniently delivered to the workstation, stationary machines maximize productivity and quality. Conversely, when we need to operate on already installed systems, portable machines that open and attach directly to the pipe become the only viable option.

Finally, the frequency of use significantly impacts the investment. For sporadic jobs or one-off projects, rental eliminates fixed costs while maintaining access to professional machines. Conversely, in continuous production, the purchase pays for itself quickly, especially with automatic machines where programmed feed rates reduce cycle times and operating costs.

G.B.C. machines are specifically designed to operate in demanding industrial environments, characterized by complex operating conditions. They are appreciated for their high resistance and durability, qualities that ensure reliability even in applications requiring high repeatability.



Welding Preparation: Why Beveling Is Essential

Imagine joining two pipes with a weld bead. If the edges were simply pressed together without a bevel, the molten metal would remain on the surface without penetrating the joint. At first glance, it might appear solid, but under load, the joint would easily fail. The bevel, however, creates the necessary space for the weld pool to penetrate deeper, allowing for multiple passes and increasing the joint’s resistant cross-section.

Since 2014, the EN 1090 standard has introduced mandatory requirements for metal structures in the European Union. Companies must demonstrate, through WPS (laboratory-validated welding procedures), that the preparation and chamfer meet established tolerances. A qualified welding coordinator verifies each stage of the process to ensure compliance and safety.

The difference is evident in testing: a joint prepared according to the specific standards passes tensile and impact tests, equaling or even exceeding the strength of the base material. Poorly prepared joints, on the other hand, show cracks, inclusions and lack of fusion phenomena, that is, areas where the metal has not joined correctly.

Most used bevel angles

There is no universally optimal bevel angle, as the choice depends on the type of weld, pipe diameter, and material. However, some configurations have become industry standards. The most common angles are 30°, 37.5°, and 45°, each with specific characteristics:

• 30°: Ideal for thin pipes or applications where it is necessary to minimize the amount of filler metal.
• 37.5°: Very common angle in heat exchangers and serial production, as it balances ease of welding and penetration of the molten metal.
• 45°: Typical for thicker pipes or joints that require deep and uniform penetration of the weld material.

Then there is the J-bevel, which drastically reduces the bevel volume while ensuring optimal weld penetration into the material, while the V-bevel remains the simplest to create for thin walled pipes and is commonly used in both automated and manual pipe welding.

Maintenance and tools

Tool life depends significantly on the material being machined and the operator’s ability to operate the machine correctly. Many companies prefer to adopt interchangeable inserts, which allow for the quick replacement of only the worn part, without having to replace the entire tool. A clear sign of wear is increased vibration during cutting, indicative of loss of edge and a consequent reduction in precision.

Lubrication also plays a crucial role: modern lubricants reduce friction and temperature during machining, significantly extending tool life. Maintaining machine cleanliness is also essential, as chips and metal residues can damage sensitive components. Finally, jaws and clamping systems must be checked regularly, as a vibrating machine not only compromises cutting quality but also risks mechanical damage to components.
