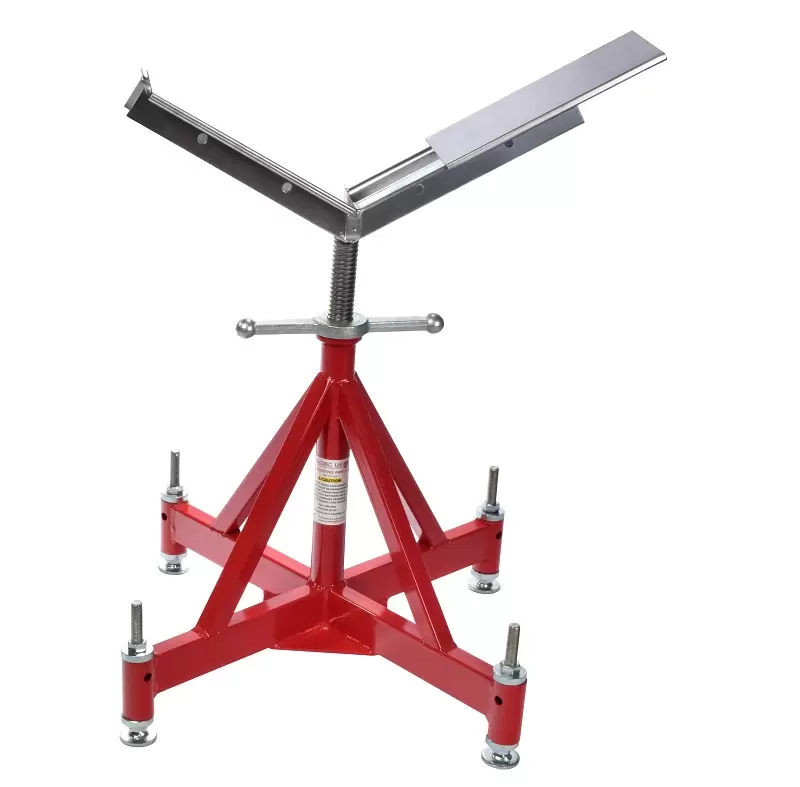

The PJQ Quattro Heavy Duty Pipe Stands are the ideal solution for heavy duty pipe handling, in the workshop or for site applications.

The Large Vee Head, heavy duty base and variety of head options make the Quattro the most durable and versatile pipe stand on the market.

The Quattro stand can be used as a simple jack stand, supplied as standard with levelling pads to accommodate uneven working surfaces. Weight load tested to 2500kgs per stand, the Quattro stands can also be supplied with lockable castor wheels so pipes of up to 36″ diameter can be moved around a workshop or site.

Full details and models available in the data sheet.

PRODUCT FEATURES

Weight certified to 2500kg
For pipe up to 36” diameter
Variety of head options
Optional castor wheel for pipe transportation
Height adjustable
Suitable for carbon or stainless steel

BASE UNIT
PJQB – Load capacity KG: 2.500 – Weight KG: 10 – Pipe Size: N/A

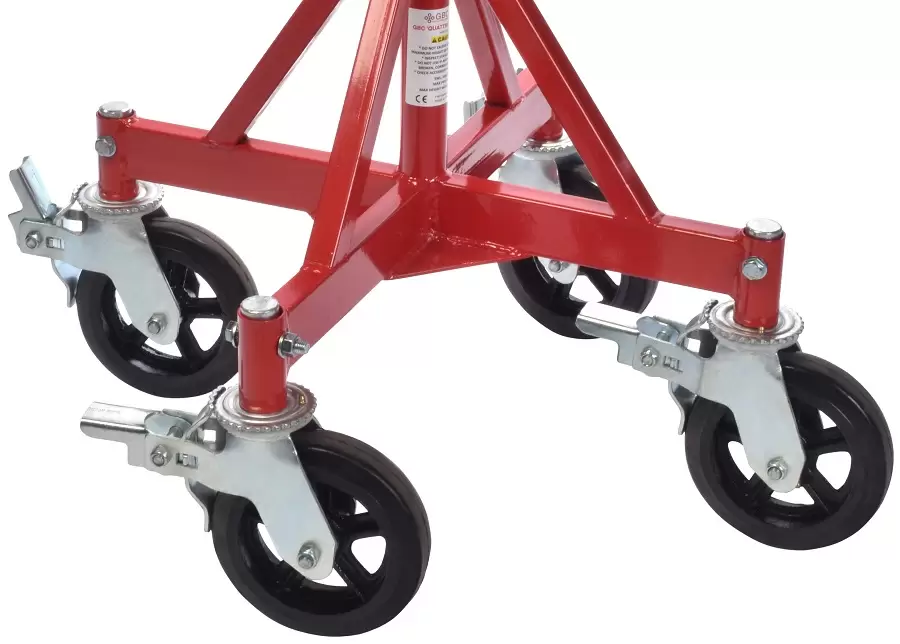

ROLLER WHEEL KIT
RWK4 – Load capacity KG: 2.000 – Weight KG: 11 – Pipe Size: N/A

LARGE V-HEAD OPTIONS

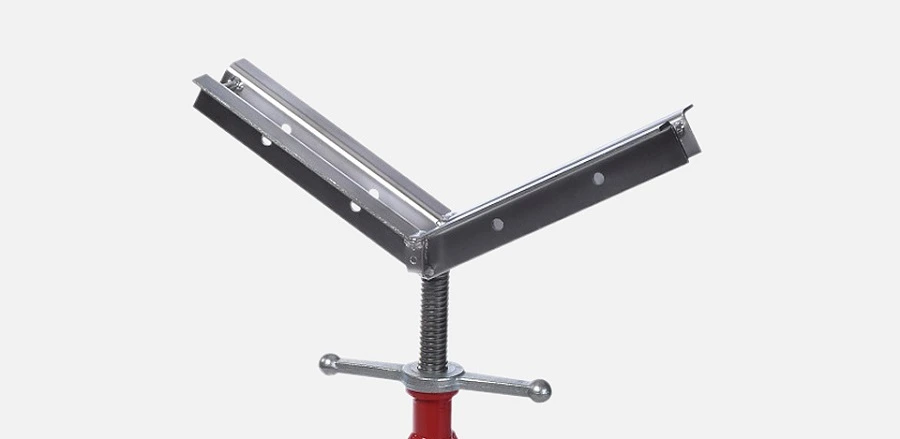

LARGE VEE HEAD
LVH – Load capacity KG/LBS: 2.500/5.510 – Weight KG/LBS: 7,5/16,5– Pipe Size: 1”-36”

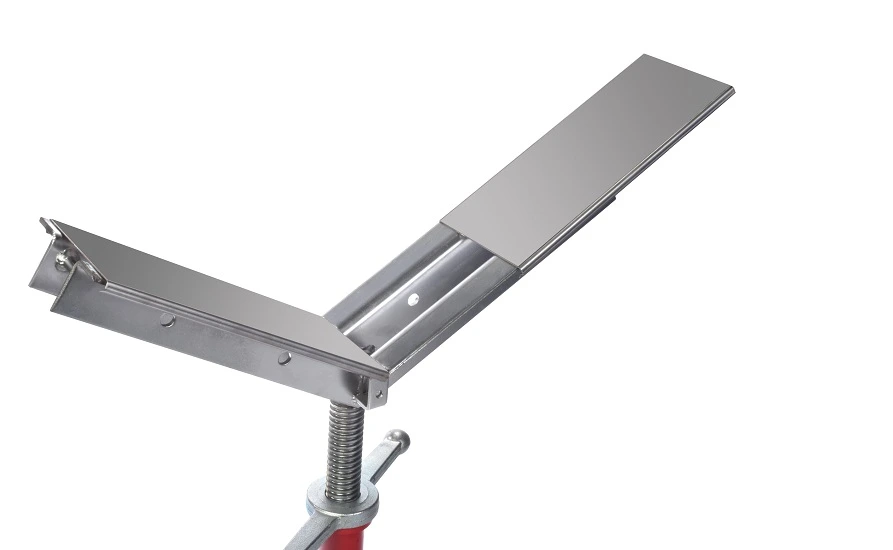

STAINLESS STEEL SLEEVES
SSC4 – Load capacity KG/LBS: 2.500/5.510 – Weight KG/LBS: 1/2,2 – Pipe Size: 1”-36”

LARGE V-HEAD WHEEL KIT OPTIONS

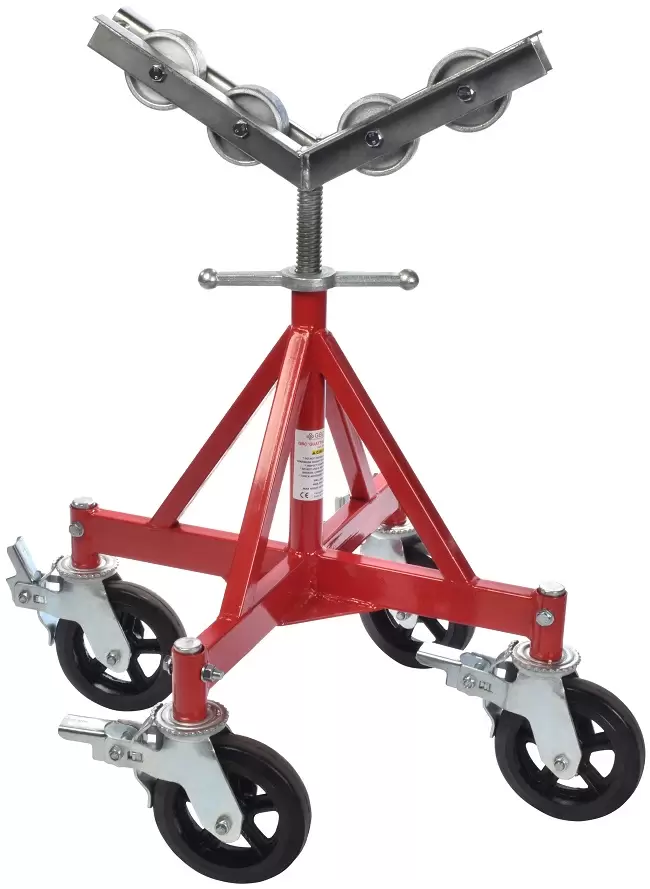

STEEL WHEELS
SWK4 – Load capacity KG/LBS: 2.000/4.400 – Weight KG/LBS: 10,5/23,1

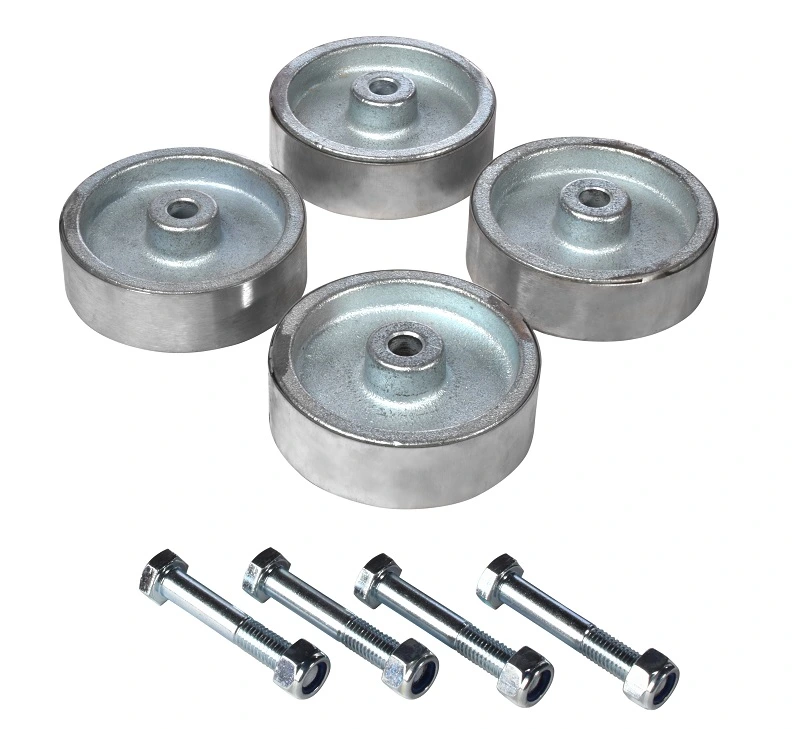

SWK4SS (stainless steel) – Load capacity KG/LBS: 2.000/4.400 – Weight KG/LBS: 10,5/23,1

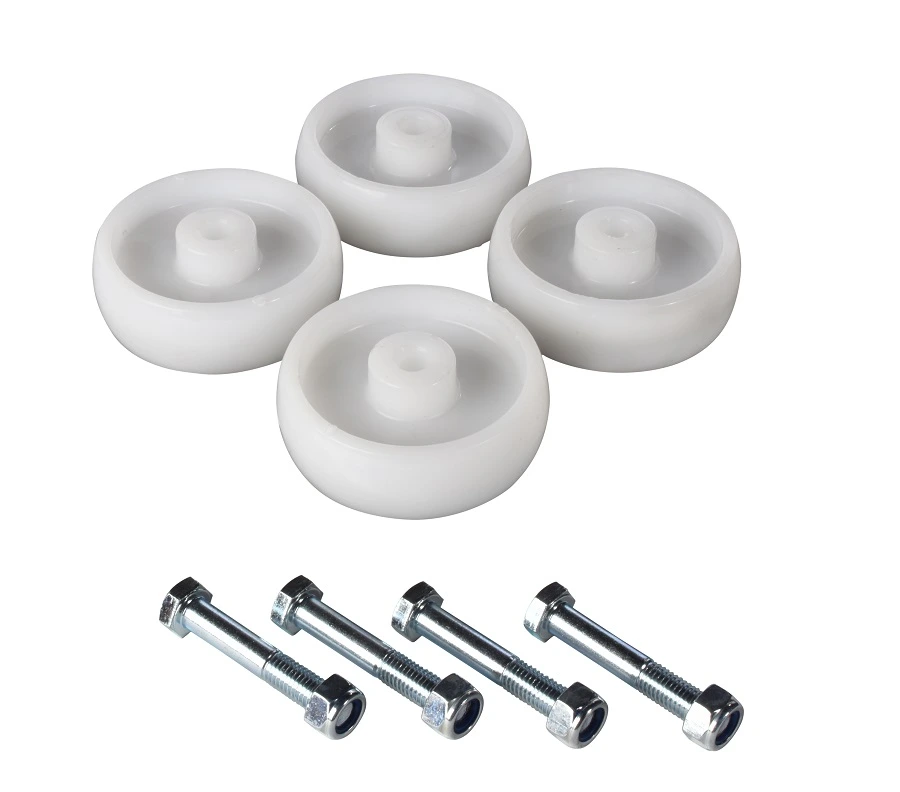

NYLON WHEELS
NWK4- Load capacity KG/LBS: 450/990 – Weight KG/LBS: 8,5/18,7

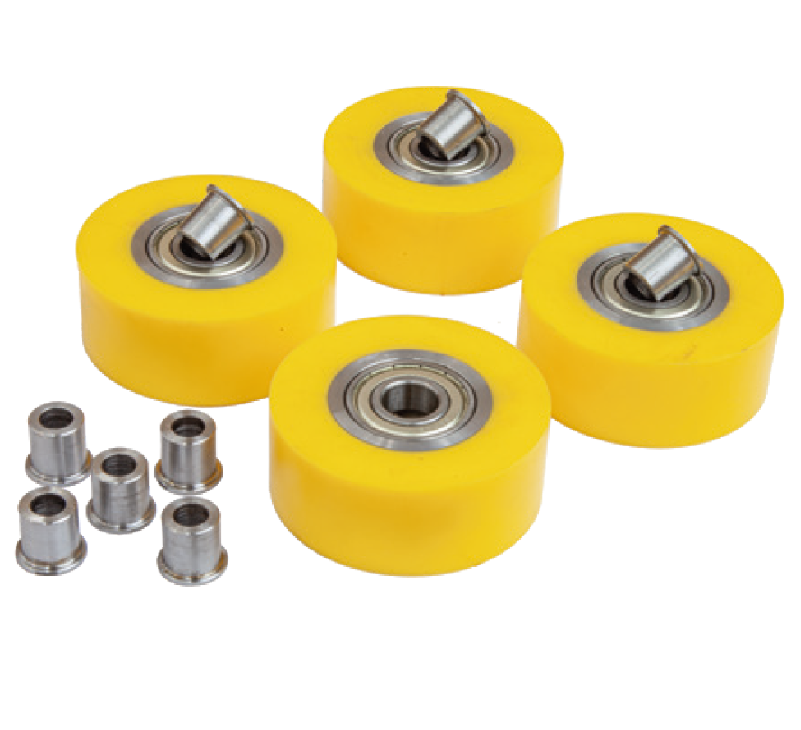

POLYURETHANE WHEELS
PWK4- Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 11.5/25.35

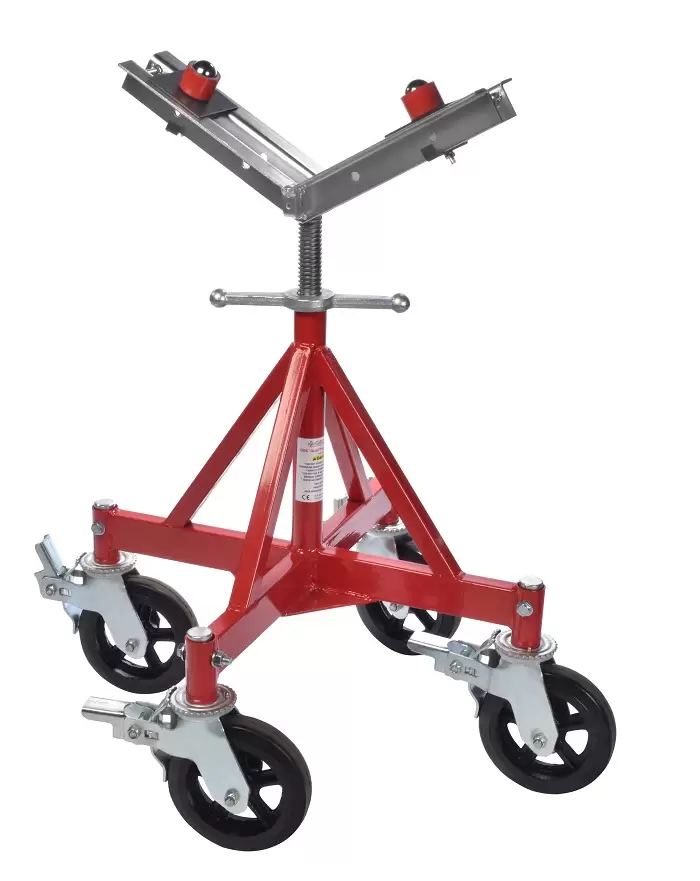

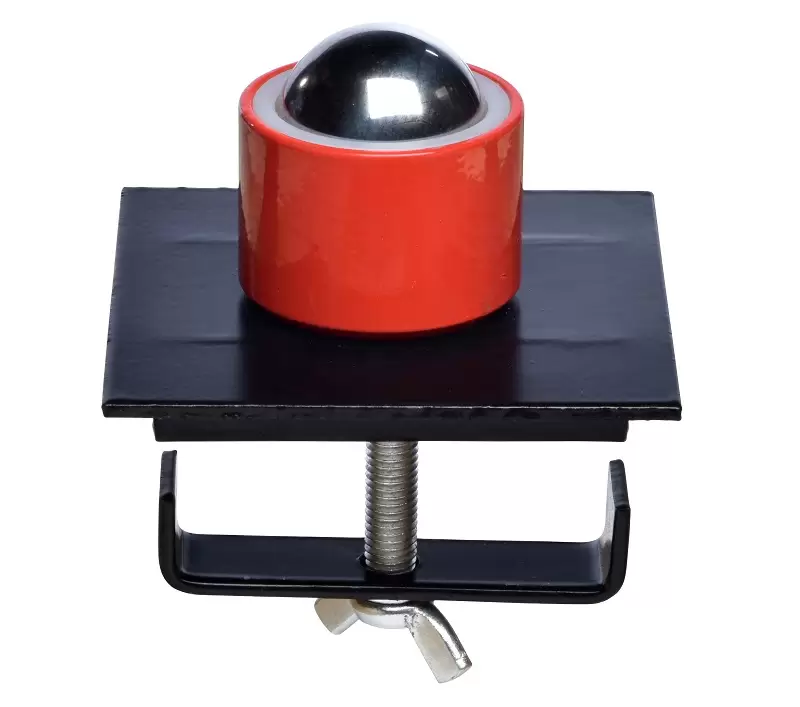

BALL TRANSFERS
BTK4 – Load capacity KG/LBS: 600/1,320 – Weight KG/LBS:8,5/18,7
BTK4SS (stainless steel) – Load capacity KG/LBS: 600/1,320 – Weight KG/LBS:8,5/18,7
