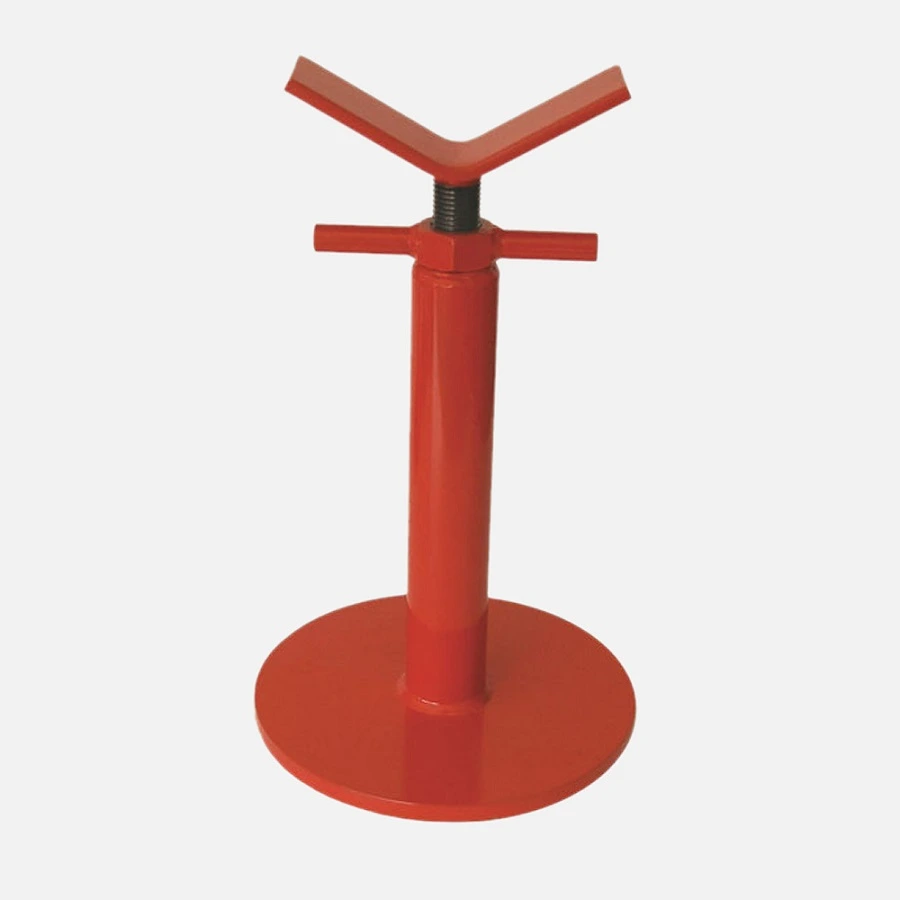

The PJ1 Pipe Stand is a basic single tubed pipe stand, simple to use and easy to set-up.

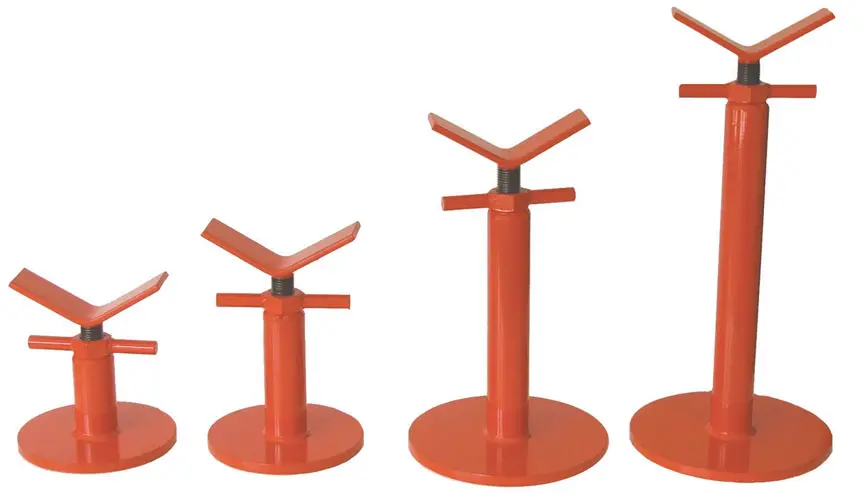

A favourite for low level work in all fab shops. Available in 4 standard heights from 7″ (18cm) to 28″ (72cm).

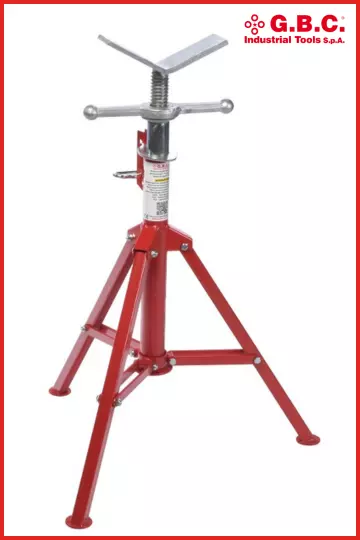

Optional roller heads from the PJ3 pipe stand series can also be fitted to the vee Head of the PJ1 Stand to suit varying applications.

Other custom sizes available upon request.

Full details and models available in the data sheet.

PRODUCT FEATURES

RANGE
PJ1-1 – Min/Max height inches: 7”-10.25” – Min/Max height metric: 175-260mm – Weight Load: 450kgs
PJ1-2 – Min/Max height inches: 10″-16″ – Min/Max height metric: 250-400mm – Weight Load: 450kgs
PJ1-3- Min/Max height inches: 16″-22″ – Min/Max height metric: 400-550mm – Weight Load: 450kgs
PJ1-4 – Min/Max height inches: 22″-27″ – Min/Max height metric: 550-700mm – Weight Load: 450kgs
PJ1-5 – Min/Max height inches: 27.5″-33.5″ – Min/Max height metric: 700-850mm – Weight Load: 450kgs

OPTIONAL ACCESSORIES

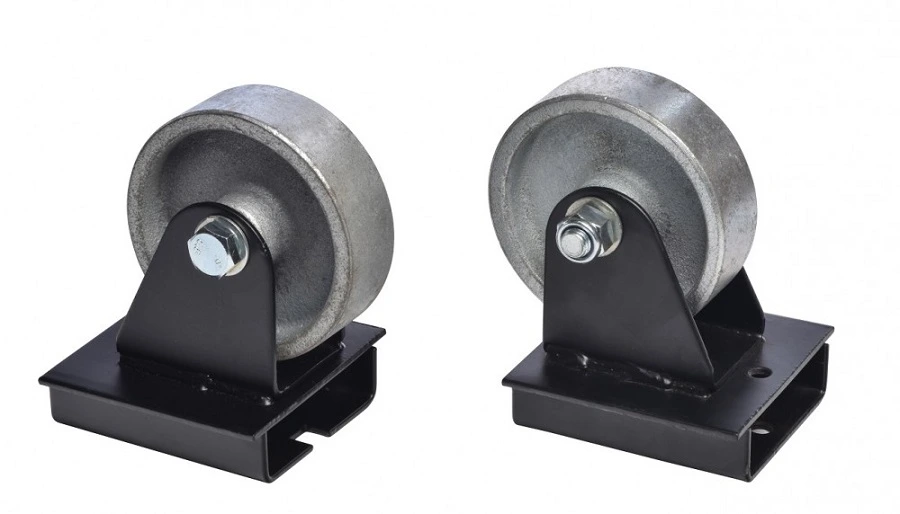

STEEL WHEELS
SWK3 – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Pipe Size: 1”-12”
SWK3SS – Load capacity KG/LBS: 1,000/2,205 – Weight KG/LBS: 3.4/7 – Pipe Size: 1”-12”

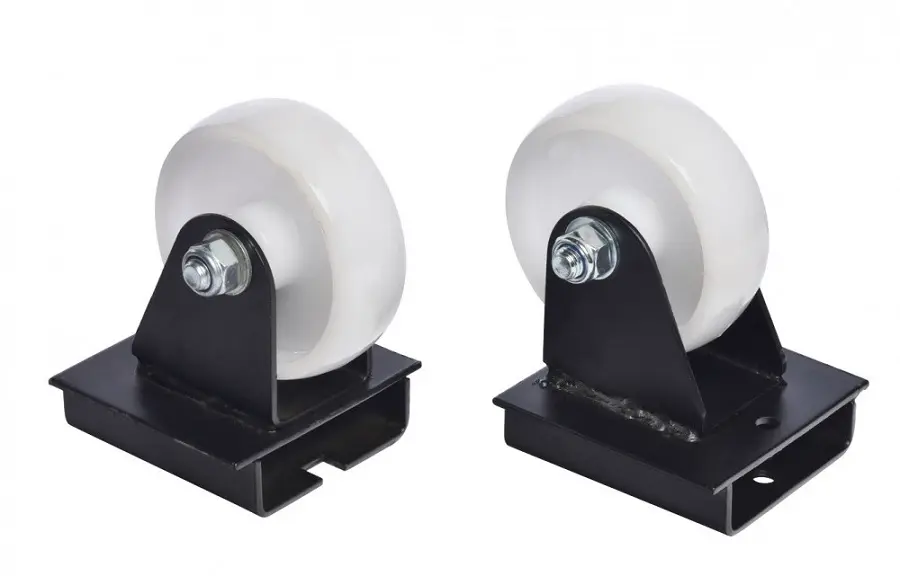

NYLON WHEELS
NWK3- Load capacity KG/LBS: 450/992 – Weight KG/LBS: 2/5 – Pipe Size: 1”-12”

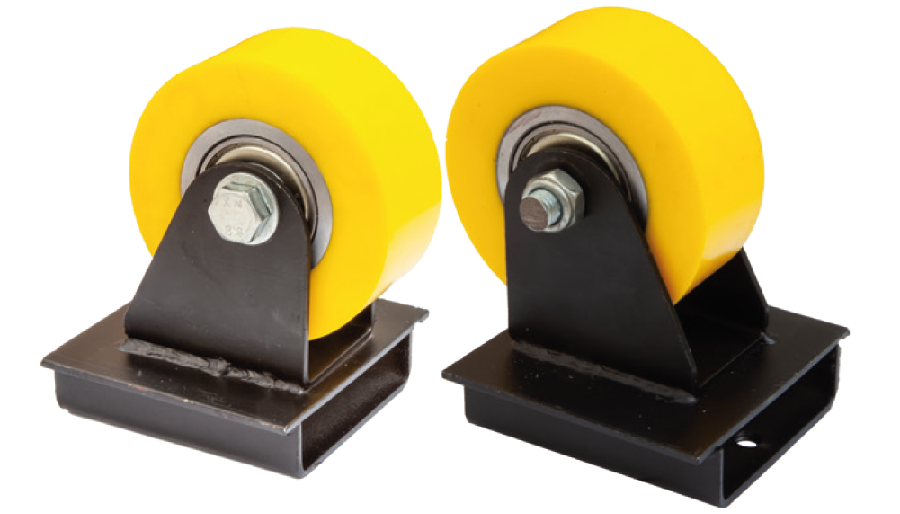

POLYURETHANE WHEELS
PWK3- Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 4/8.8 – Pipe Size: 1”-12”

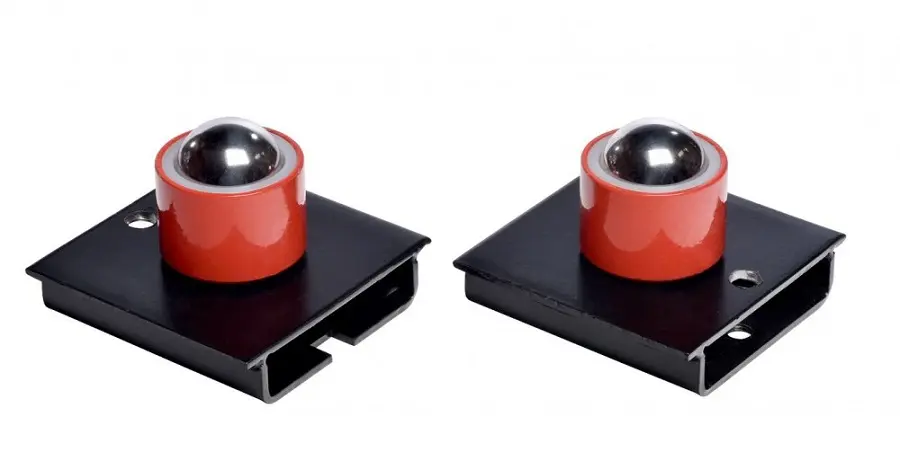

BALL TRANSFERS
BTK3 – Load capacity KG/LBS: 600/1320 – Weight KG/LBS: 2.5/6 – Pipe Size: 1”-12”
BTK3SS – Load capacity KG/LBS:600/1320 – Weight KG/LBS: 2.5/6 – Pipe Size: 1”-12”
