Description
Pipe Alignment Clamp BLACK BRIDGE CLAMPS
Range O/D 25,4-304,8 mm (1″-12″)
Black Bridge Clamps can be used for the welding of all kinds of materials such as carbon steel, stainless steel, duplex, super duplex and titanium.
Due to its design, the Black Bridge Clamp ensures that the clamping forces are evenly spread round the pipe to be welded because the distance between clamping points are exactly the same. This is true for all pipe dimensions within the range of the BB Clamp (1″ to 12″).
A quality product at low cost.
PRODUCT FEATURES
RANGE:
BBC2: 1″-2″ (25-65 mm) – 3,5 Lbs (1,5 kg)
BBC6: 2″-6″ (50-168 mm) – 8 Lbs (3,75 kg)
BBC12: 5″-12″ (127-325 mm) – 15 Lbs (7,5 kg)
USAGE:
Quick and easy to use.
PERFORMANCE:
Combines accuracy with safety.
MATERIALS:
Stainless steel clamping feet & wing bolt bearings.
CENTRING:
Instant centring.

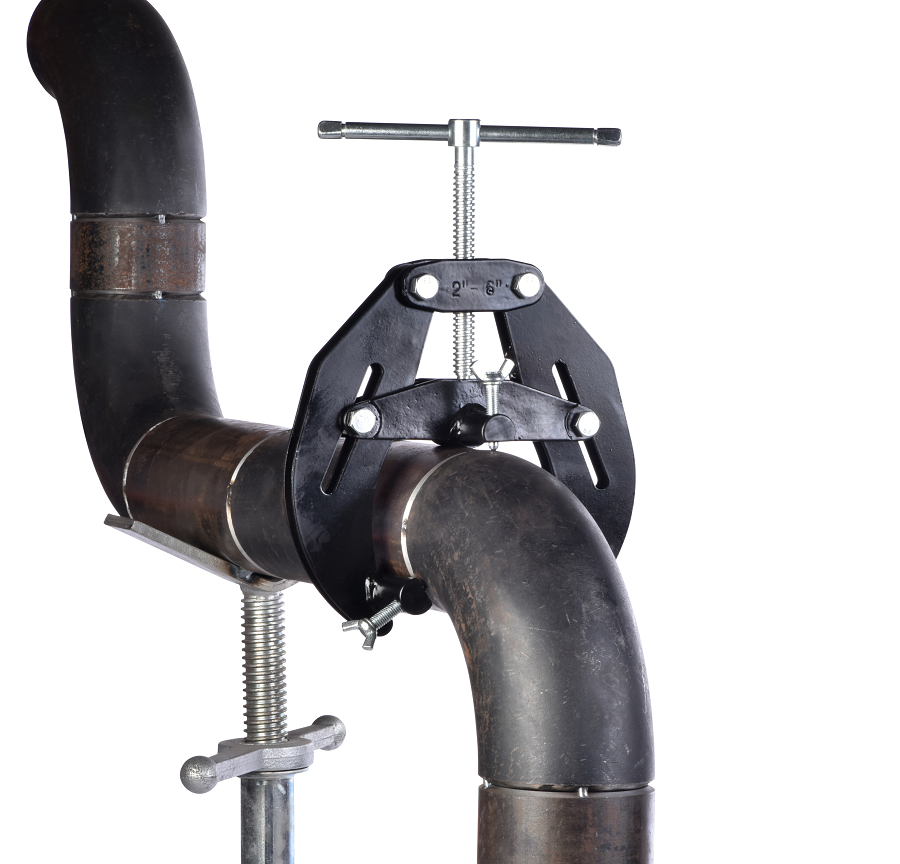

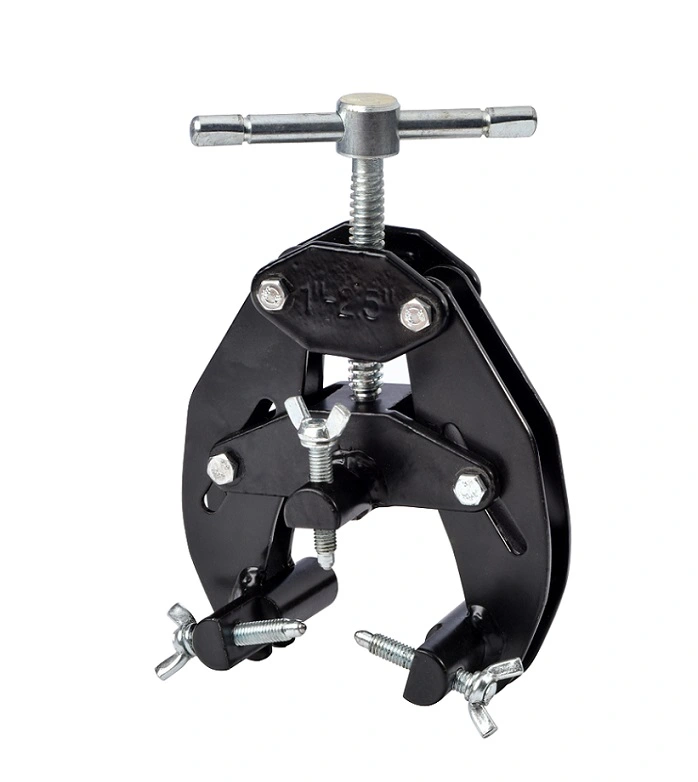

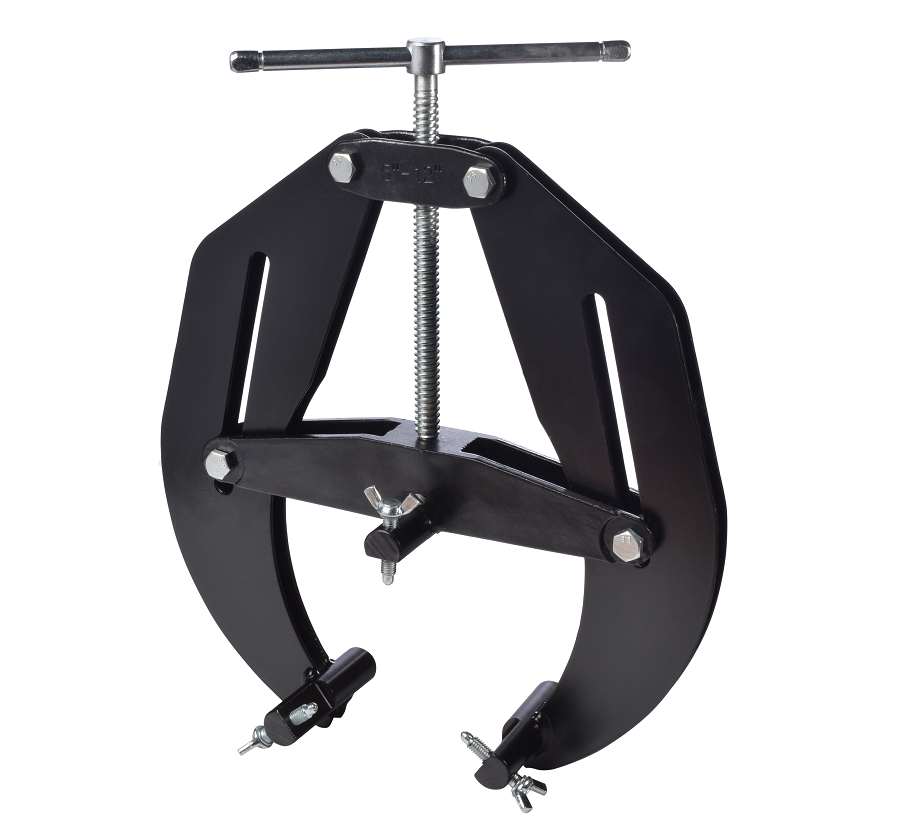

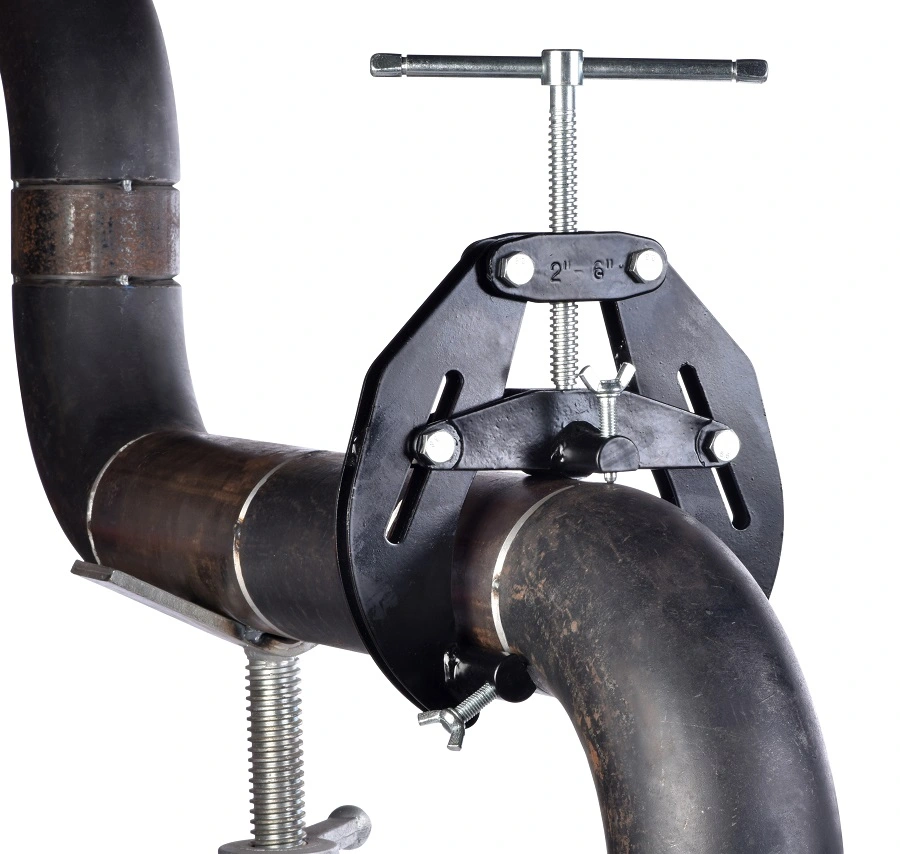

Black Bridge Welding Clamp Pictures
These clamps are suitable for a range of industries and applications, including pipe-to-pipe and pipe-to-fittings welding.
With their adjustable screws featuring stainless steel bearings, Black Bridge Clamps help reduce the risk of carbon contamination and corrosion, ensuring a clean and efficient welding process.
These clamps are an essential tool for any welding professional. Black Bridge Clamps are designed to provide a secure and stable hold, making them perfect for both industrial and DIY applications.
The arms are fabricated from steel which allows a clamping force to meet the requirements for all pipe dimensions within the range of the Black Bridge Clamp. The welding of pipe to pipe and pipe to fittings is easily performed with BB Clamp.
GBC Clamps must not be used as a lifting device. Fittings must be independently always supported.
Choose Black Bridge Clamps for a high-quality, affordable option to ensure precise and efficient pipe alignment during your welding projects.
Full details and available models in the technical data sheet.
