Description
Pipe Alignment Clamp GOLD BRIDGE CLAMPS
Range O/D 25,4-355,6 mm (1″-14″)
Gold Bridge Clamps are manufactured out of forged steel to enable maximum strength and durability. GBC Clamps must not be used as a lifting device. Fittings must be independently supported at all times.
The product range includes clamps of various sizes to accommodate different pipe diameters.
A quality product at low cost.
PRODUCT FEATURES
RANGE:
GBC3: 1”-3” (20-90 mm) – 3 LBS (1.4 KG)
GBC5: 2”-5” (50-150 mm) – 7 LBS (3 KG)
GBC7: 4”-7” (90-190 mm) – 7.5 LBS (3.3 KG)
GBC9: 5”-9” (125-225 mm) – 15.5 LBS (7 KG)
GBC14: 10”-14” (225-370 mm) – 20 LBS (7 KG)
USAGE:
Quick and easy to use.
PERFORMANCE:
Combines accuracy with safety Instant centering.
MATERIALS:
Forged steel construction for maximum strength.
PLUS:
Wing bolts with stainless steel bearings.
OPTIONAL ACCESSORIES
We also offer Stainless Steel Cover Kits for each size that can be fitted quickly to the clamps. This makes the contact points of the clamp stainless, thus eliminating contamination of the pipe and providing added protection against corrosion and wear.
GBC3SSK: 1”-3”
GBC5SSK: 2”-5”
GBC7SSK: 4”-7”
GBC9SSK: 5”-9”
GBC9SSK: 10”-14”

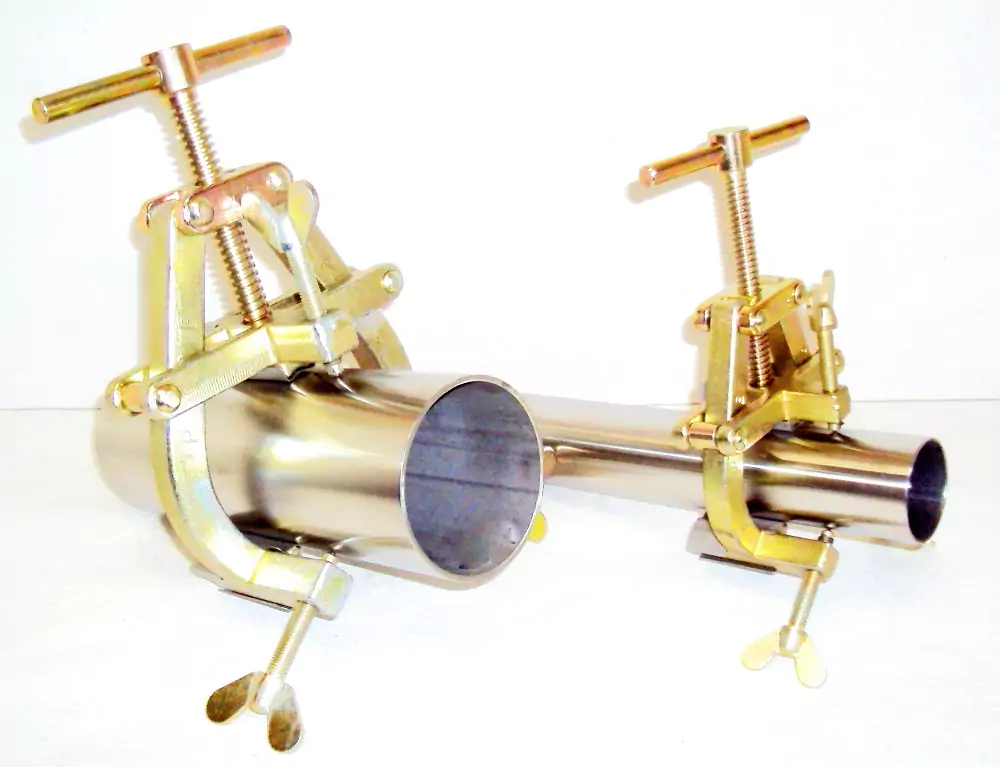

Gold Bridge Welding Clamp Pictures
Gold Bridge Welding Clamp Video
Gold Bridge Clamps are a cost-effective and reliable solution for centering pipes during welding projects. Made from forged steel, these clamps are strong and durable, ensuring accuracy and safety. The quick and easy use of these clamps makes them ideal for a range of applications and industries, including oil and gas, construction, and maintenance.
Choose Gold Bridge Alignment Clamps for a high-quality and affordable option to ensure precise and efficient pipe alignment during your welding projects.
Full details and available models in the technical data sheet.
