Description

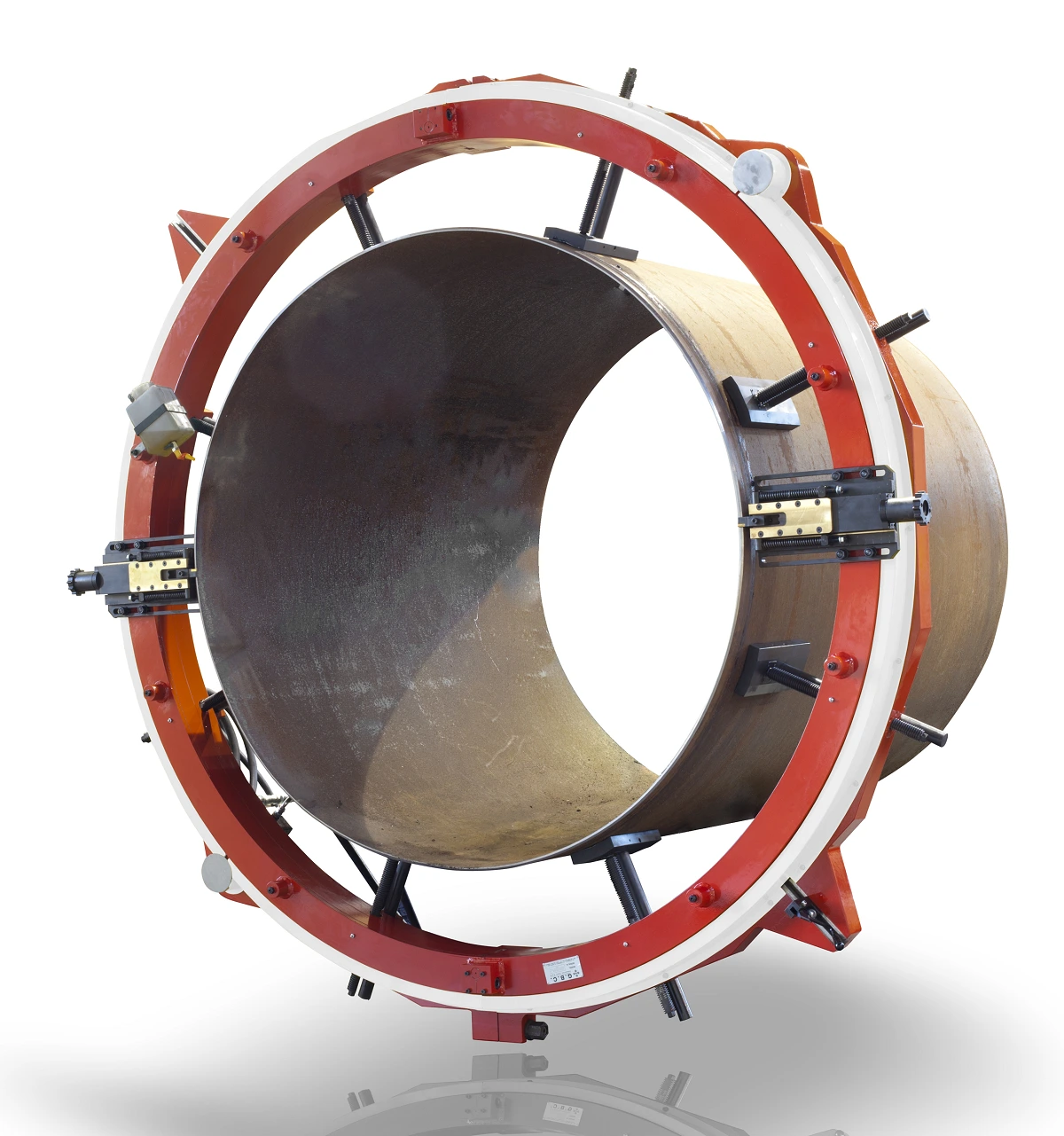

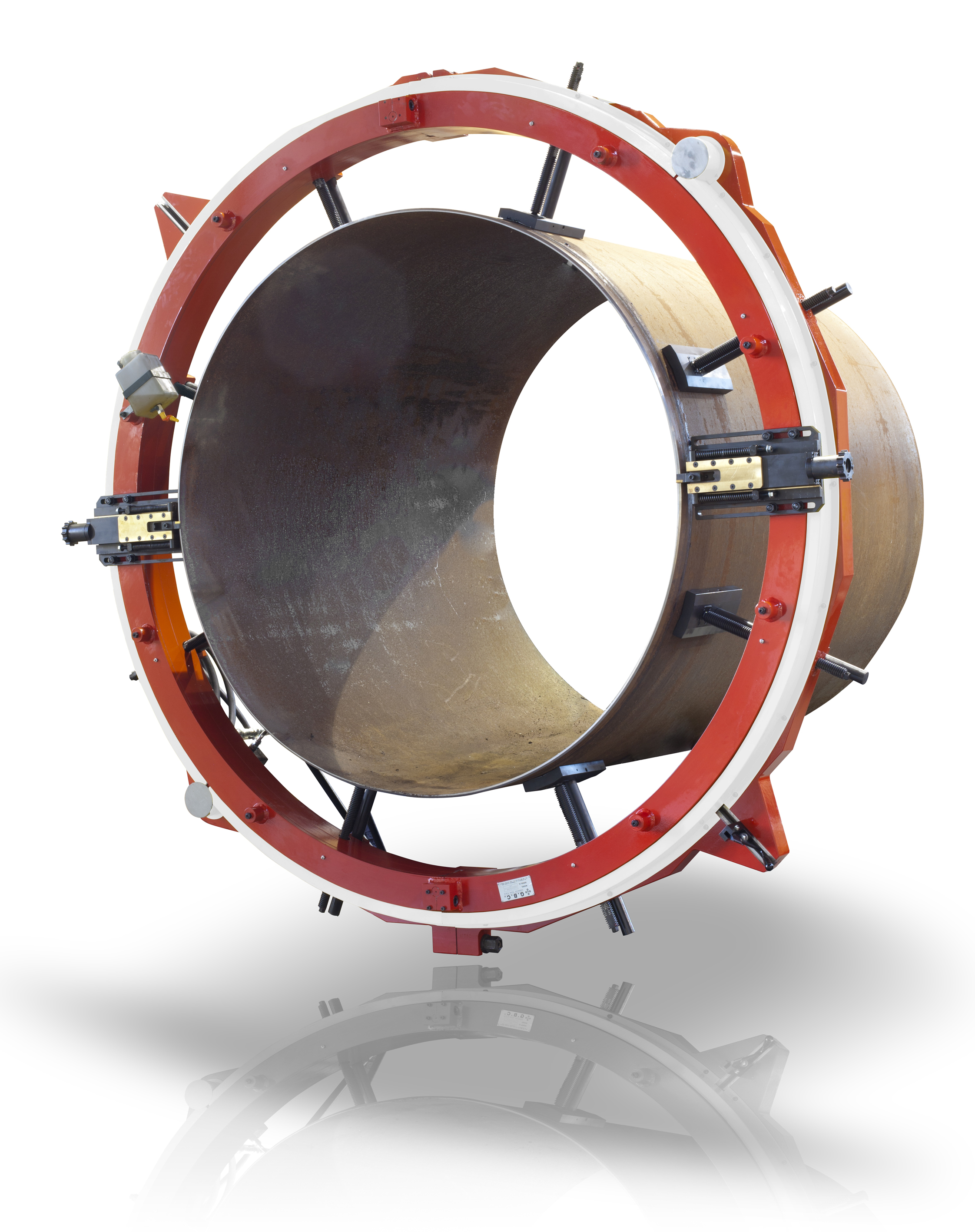

Pipe cold cutting and beveling machine HYPERCUTTER
Range Øe 1524-2540 mm (60”-100”)
Pipe cold cutting machine HYPERCUTTER is the machine conceived for cutting and beveling pipes with relevant diameters.
HYPERCUTTER is suitable for heavy jobs in the workshop as well as on the field ant it is suppied exclusively in hydraulic version.

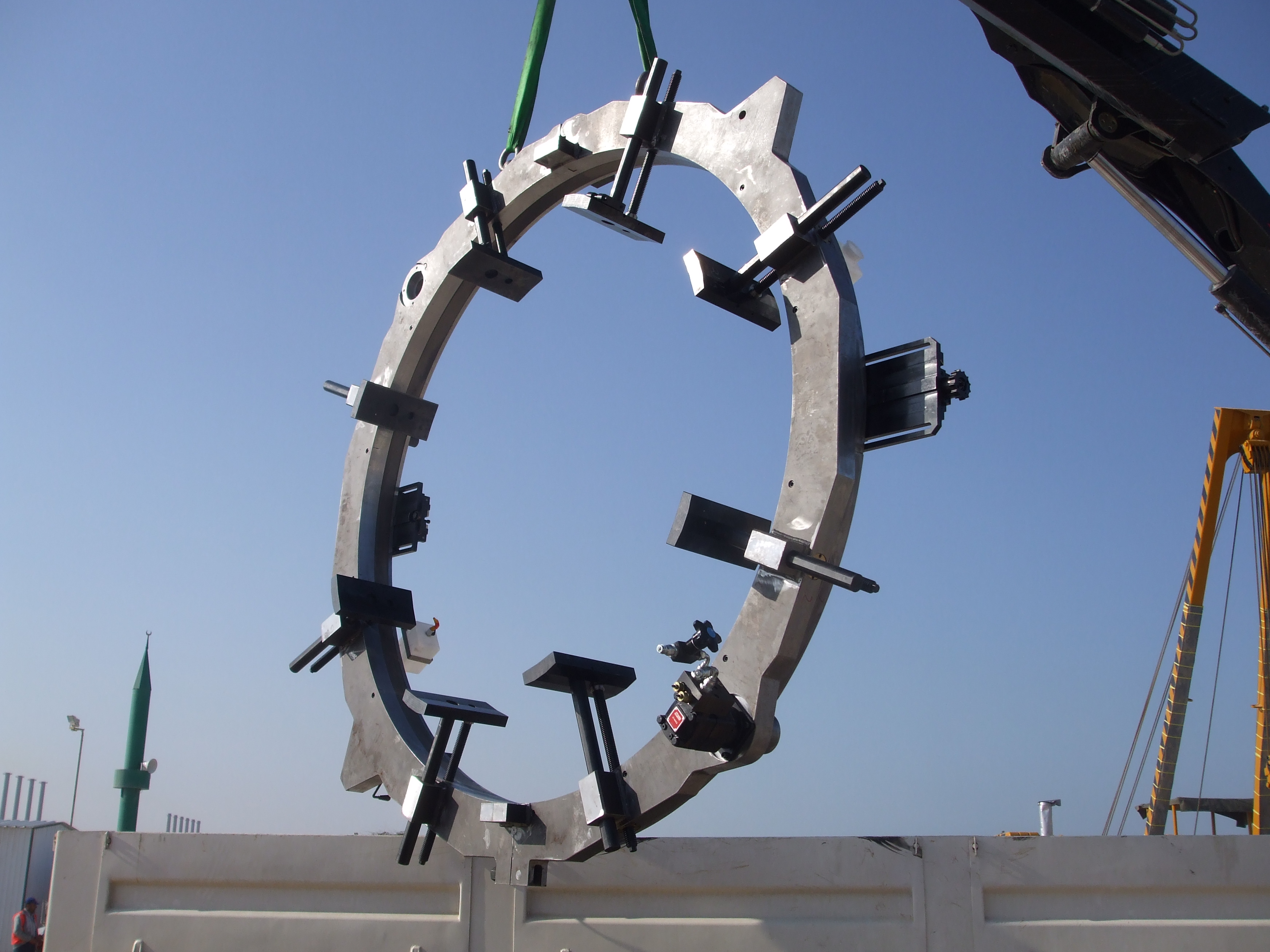

Designed for onsite applications in the pipeline field, the machine has a clamshell frame that allows the unit to be placed anywhere along the pipelines.
The locking jaws are engraved with a linear scale for a quick and easy setup of the unit.

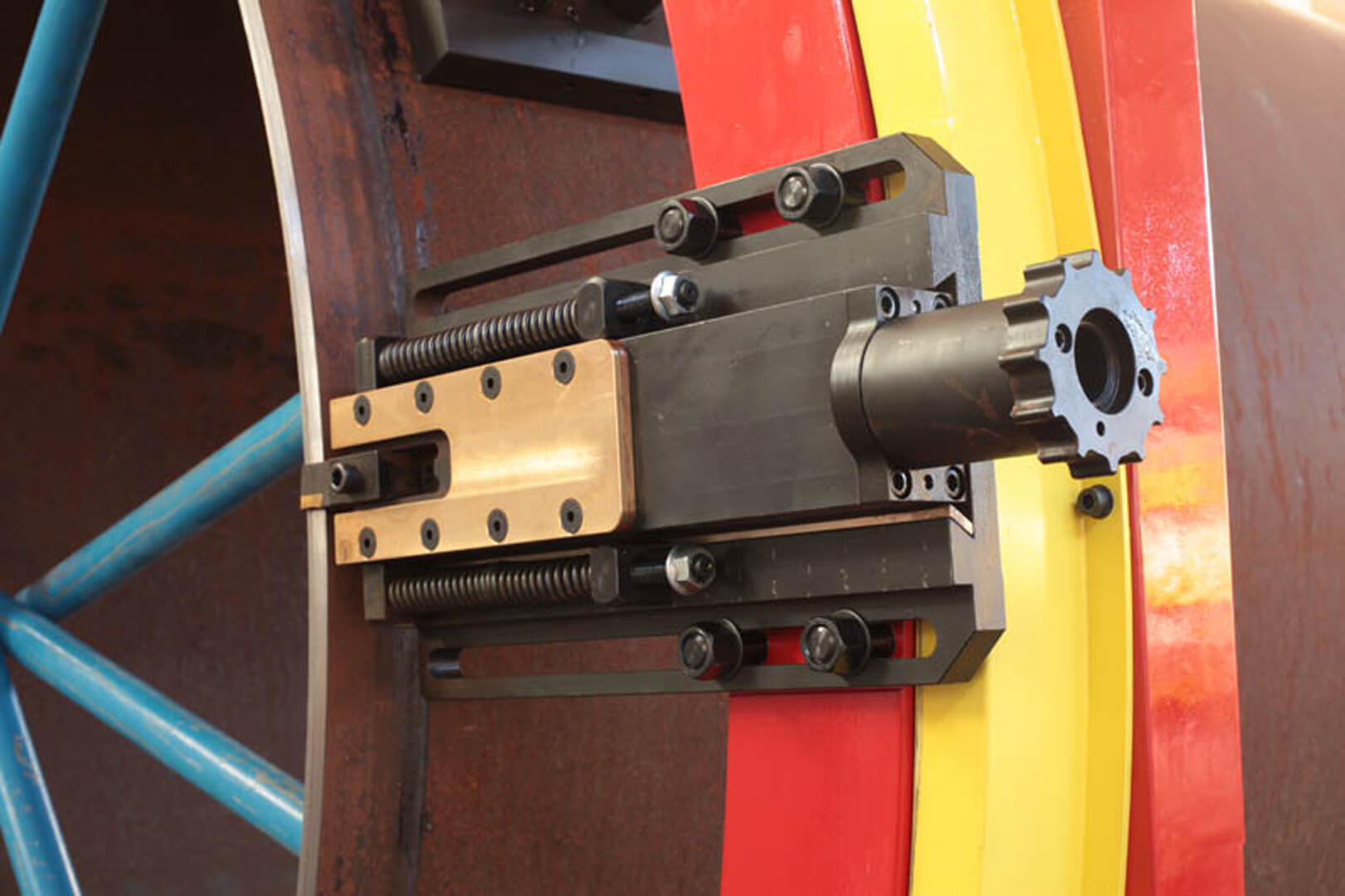

The toolholders of the pipe cold cutting machine HYPERCUTTER have a copier system that follows the pipe OD profiile to compensate the bevel offset on out of round pipes.

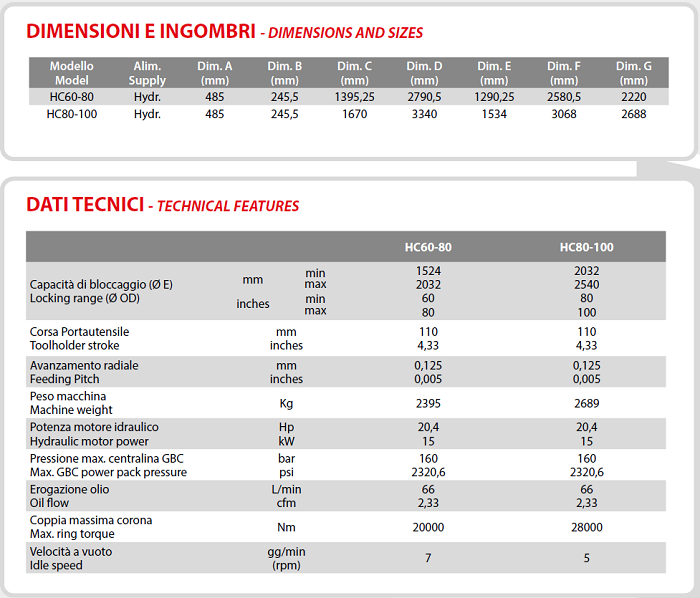

MACHINE FEATURES
RANGE:
Pipe cold cutting 60” – 100” o/d.
FUNCTIONS:
Pipe cold cutting, bevelling, facing, counterboring.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Hydraulic.
LOCKING SYSTEM:
With 8 separately adjustable points equipped with large contact plates.
Hypercutter – Pictures
Hypercutter – Video
The Hypercutter cold pipe cutter is the model of steel pipe cutter dedicated to cutting and beveling pipes with large diameters and thicknesses of pipes often used in the nuclear sector. Usable both in the workshop and on the pipeline, it is exclusively equipped with a hydraulic motor.

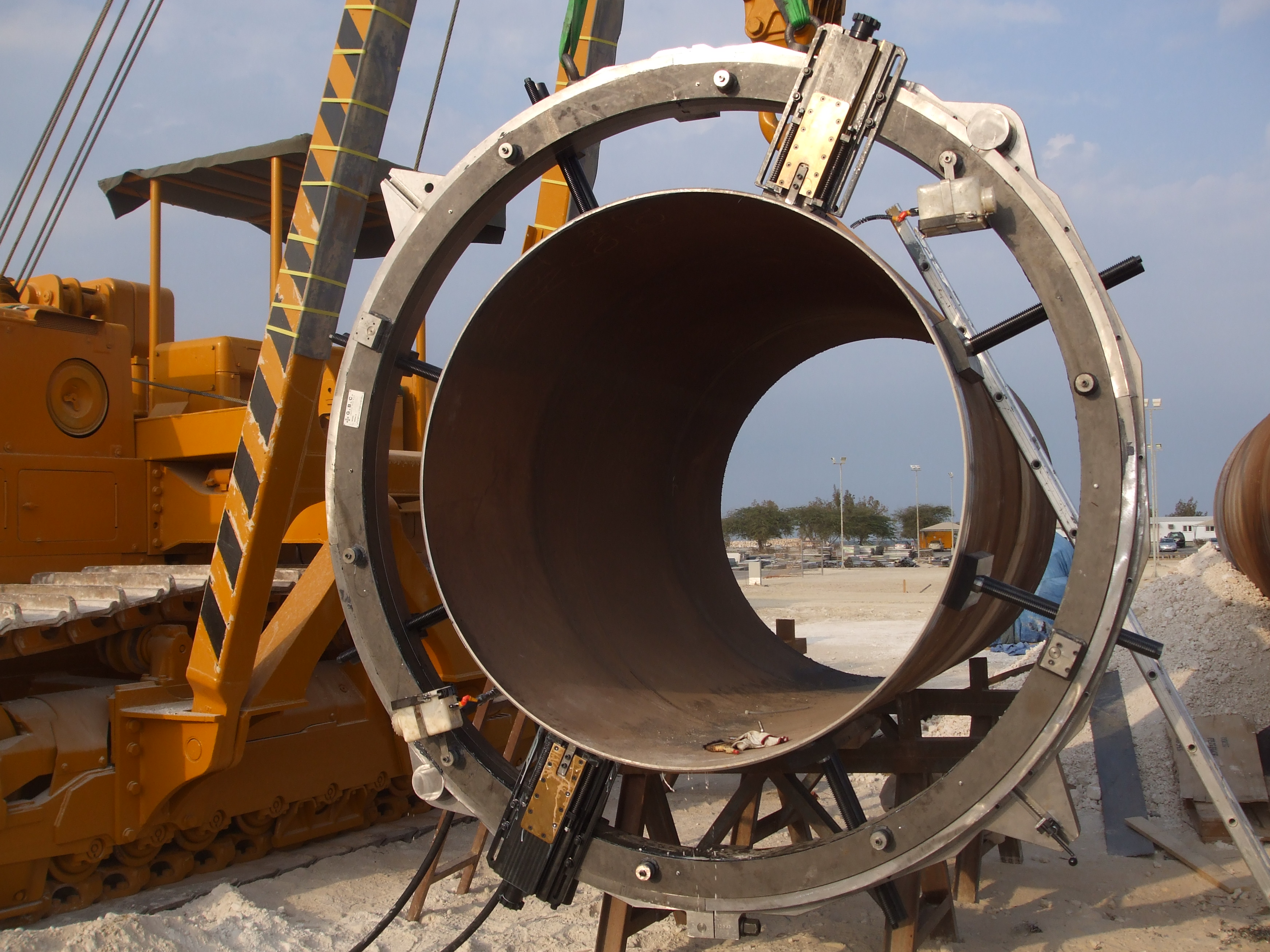

The Hypercutter pipe cutter and milling machine is a portable pipe cutter, the machine body opens allowing the machine to be installed at any point on the pipe line.
Designed for working outdoors on pipelines, the pipe cutter is supplied with a specific hydraulic motor for working on large diameters and 8 separately adjustable locking points equipped with large contact plates.

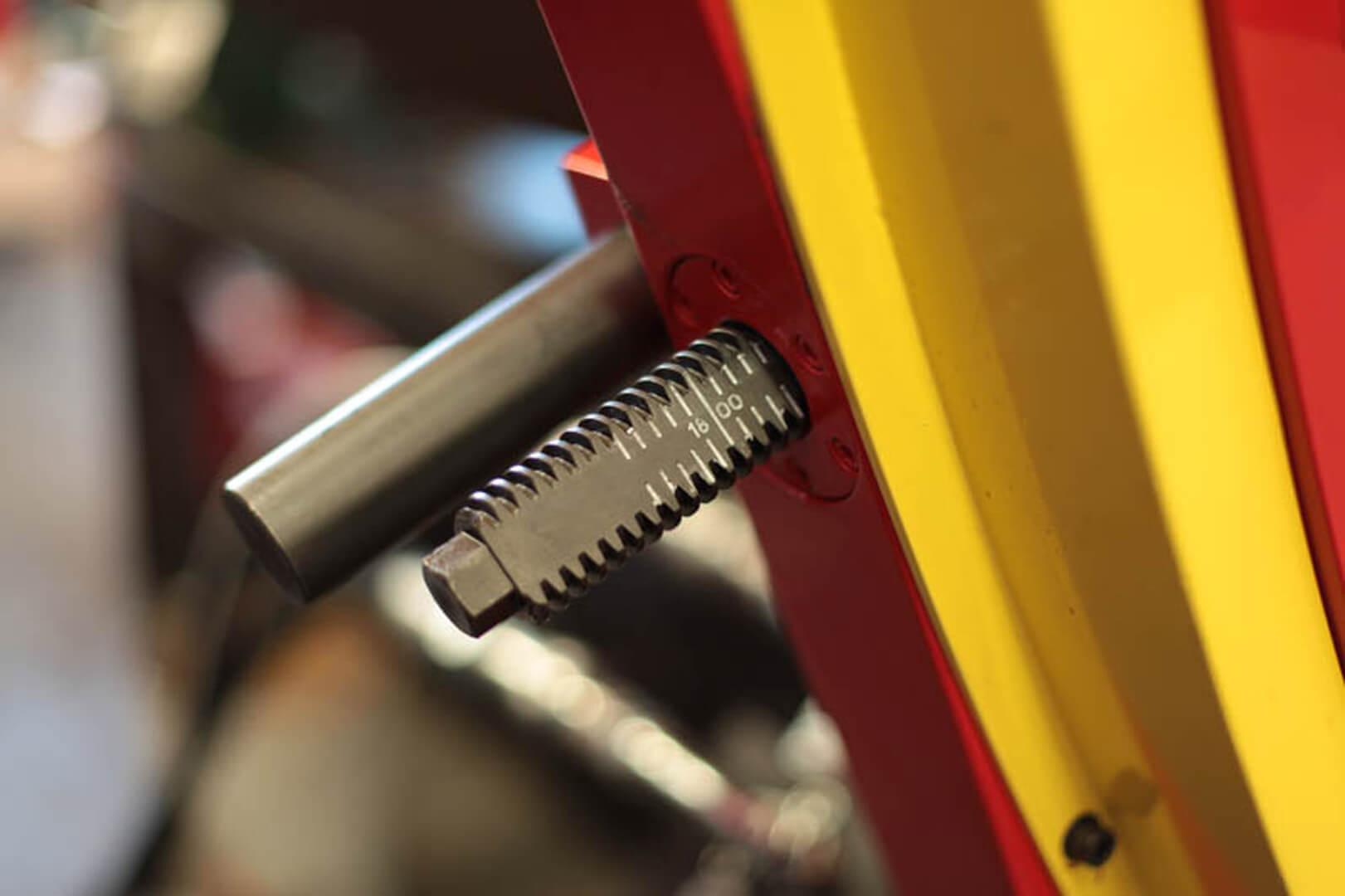

All locking jaws are engraved with the workable tube diameters to speed up positioning of the Hypercutter cold tube cutter.
Contact us if you are interested in the Hypercutter or would like to receive a free quote.
