Description
Portable pipe beveling machine MINI C40
Range ØI 20-39 mm (0,78″-1,54″)
The pipe beveling machine Mini C40 is a pipe beveling machine with a compact design. Thanks to the reduced dimensions, 40 mm, it is ideal for the job in very small places like, for example, tube wall panels.
The Mini C40 can be quipped with a set of optional reduced shafts for working tubes with ID up to 12,4 mm.

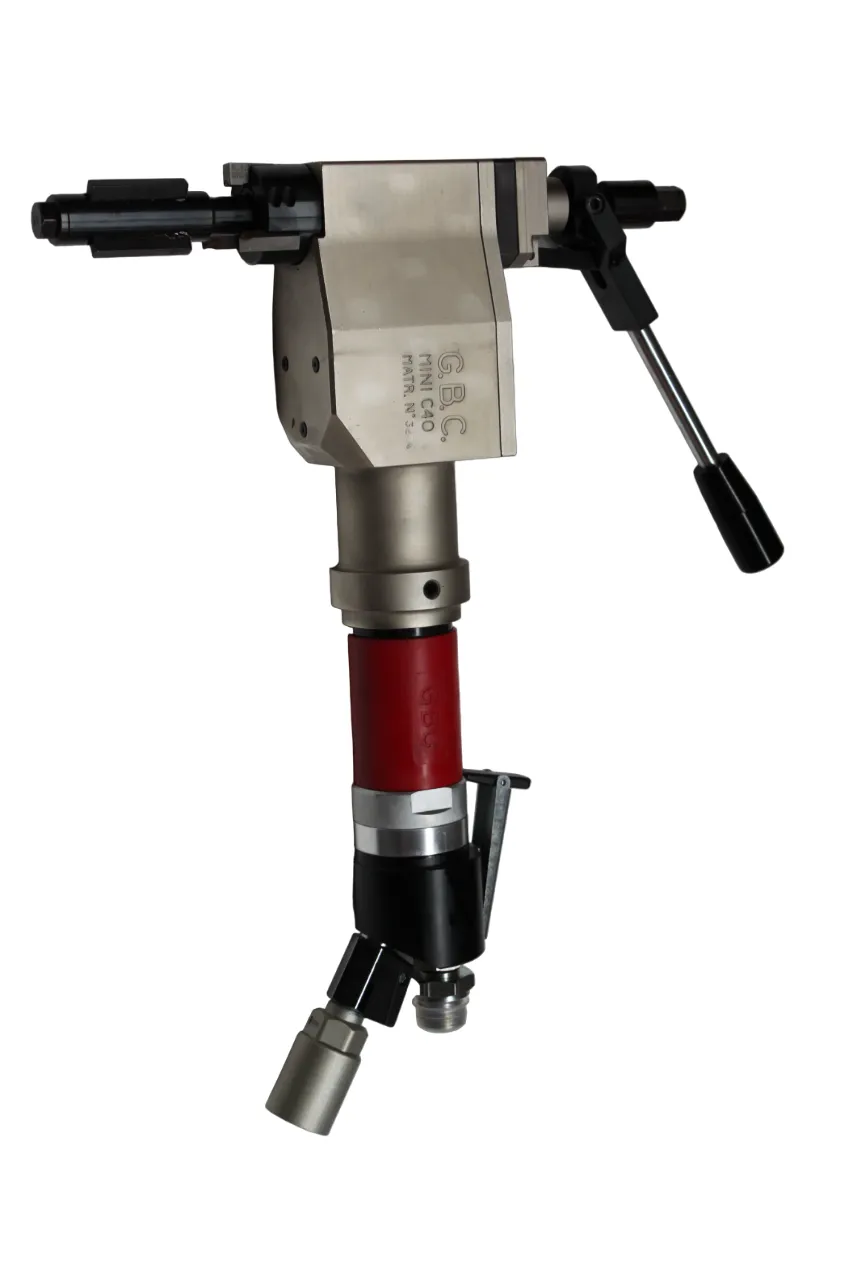

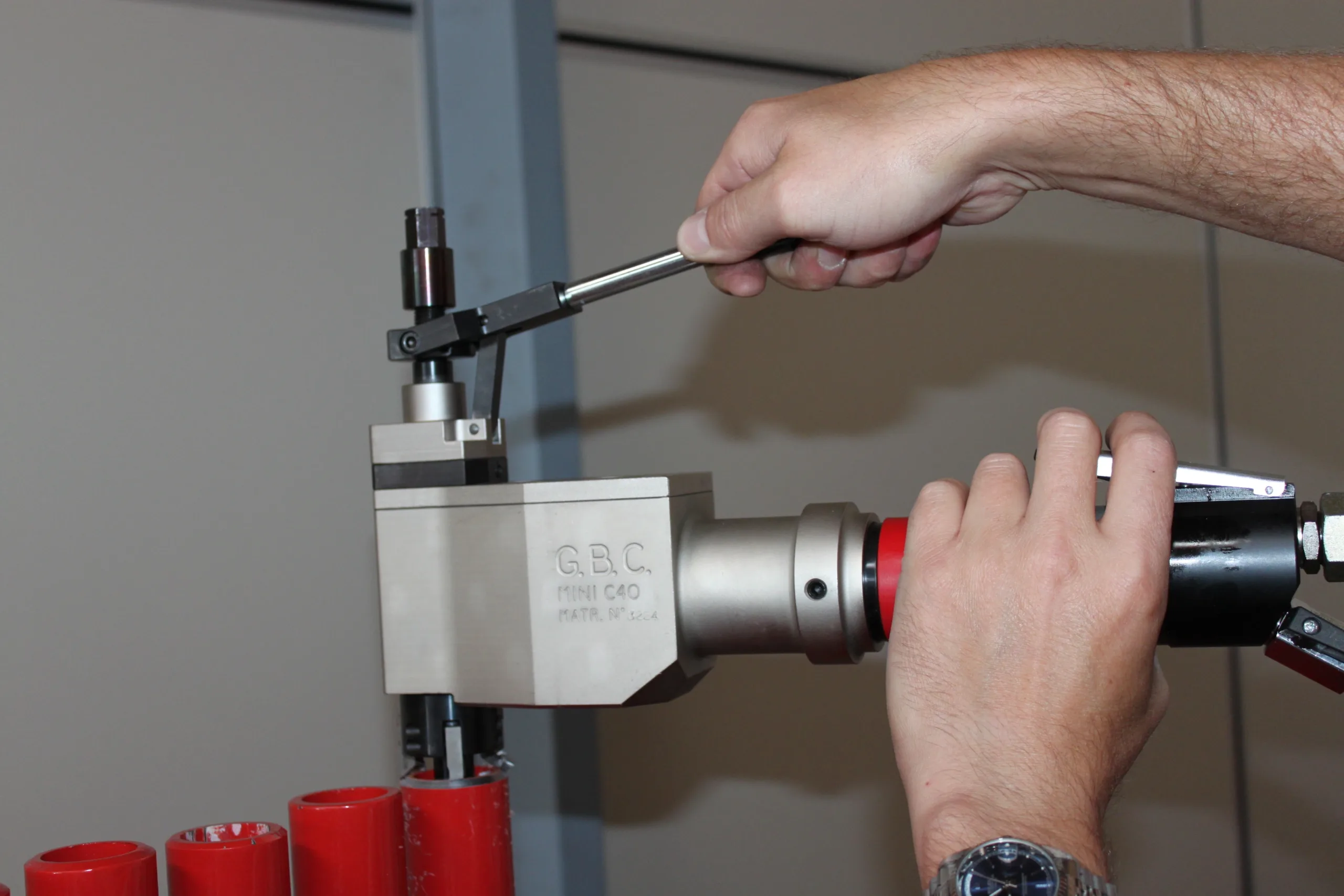

Lever handle for feeding the cutter head in tight spots where manual feeding is impossible.
The pipe beveling machine Mini C40 is available in pneumatic version and in electric version.
MACHINE FEATURES
RANGE:
Pipe beveling machine for pipes 20 – 39 mm ø ID (optional up to 12,4 mm).
FUNCTIONS:
Beveling, facing, counterboring.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Pneumatic, Electric or Battery.
FEEDING:
With lever.

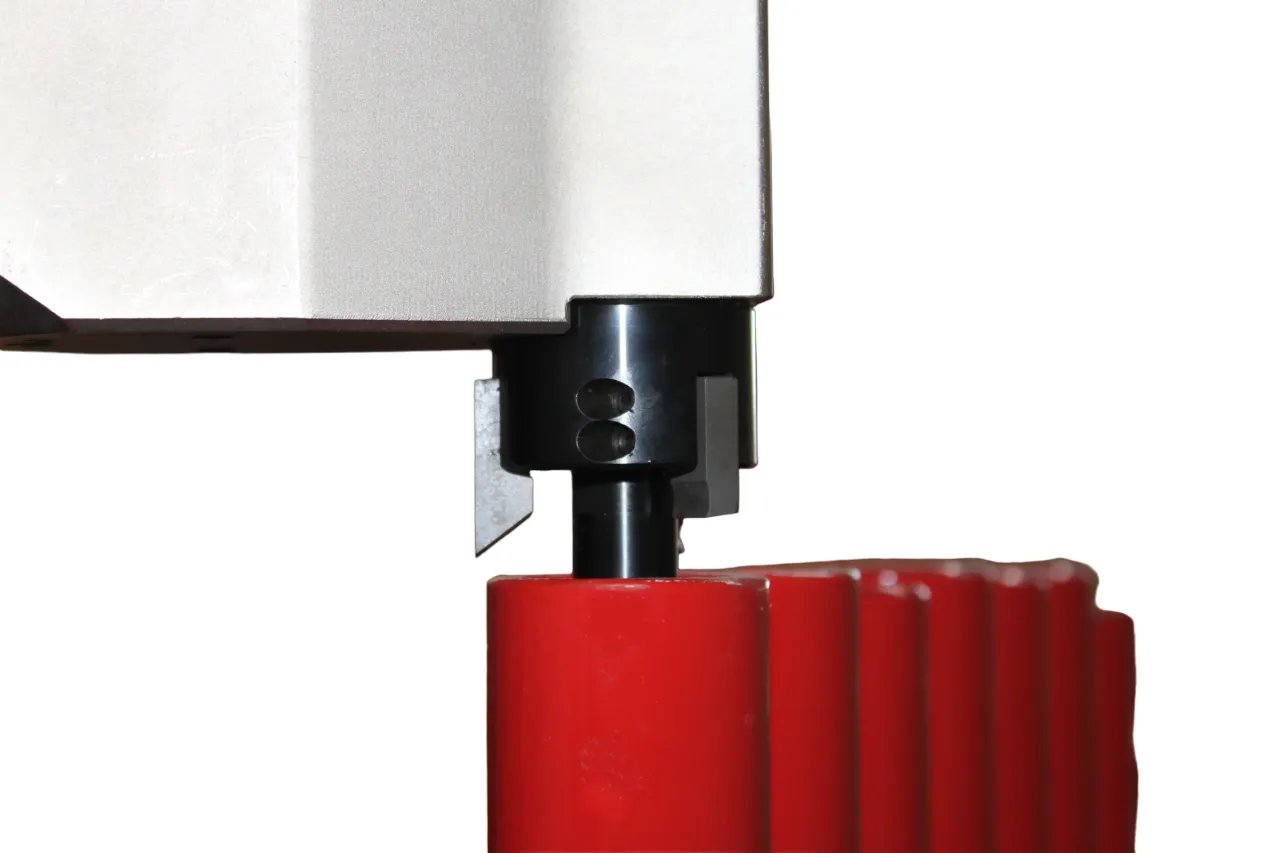

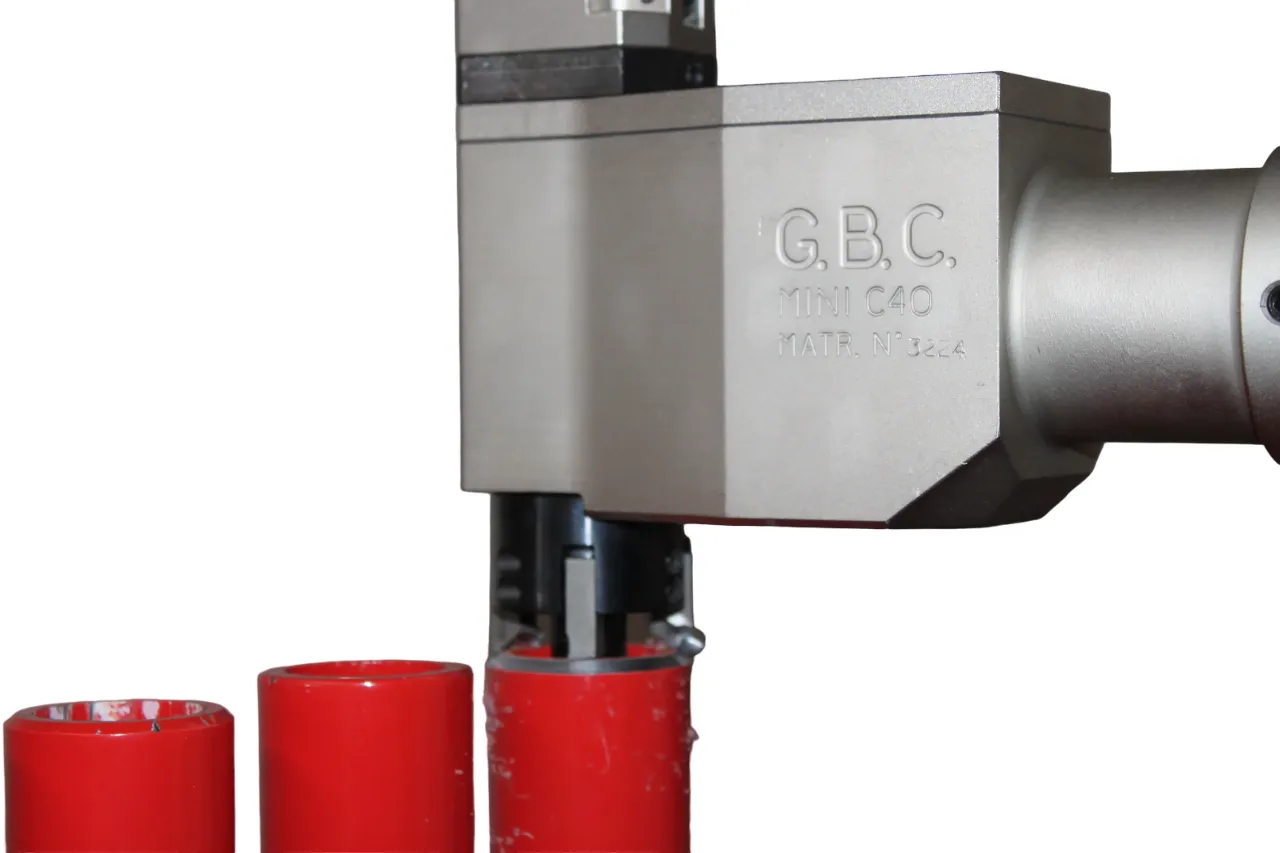

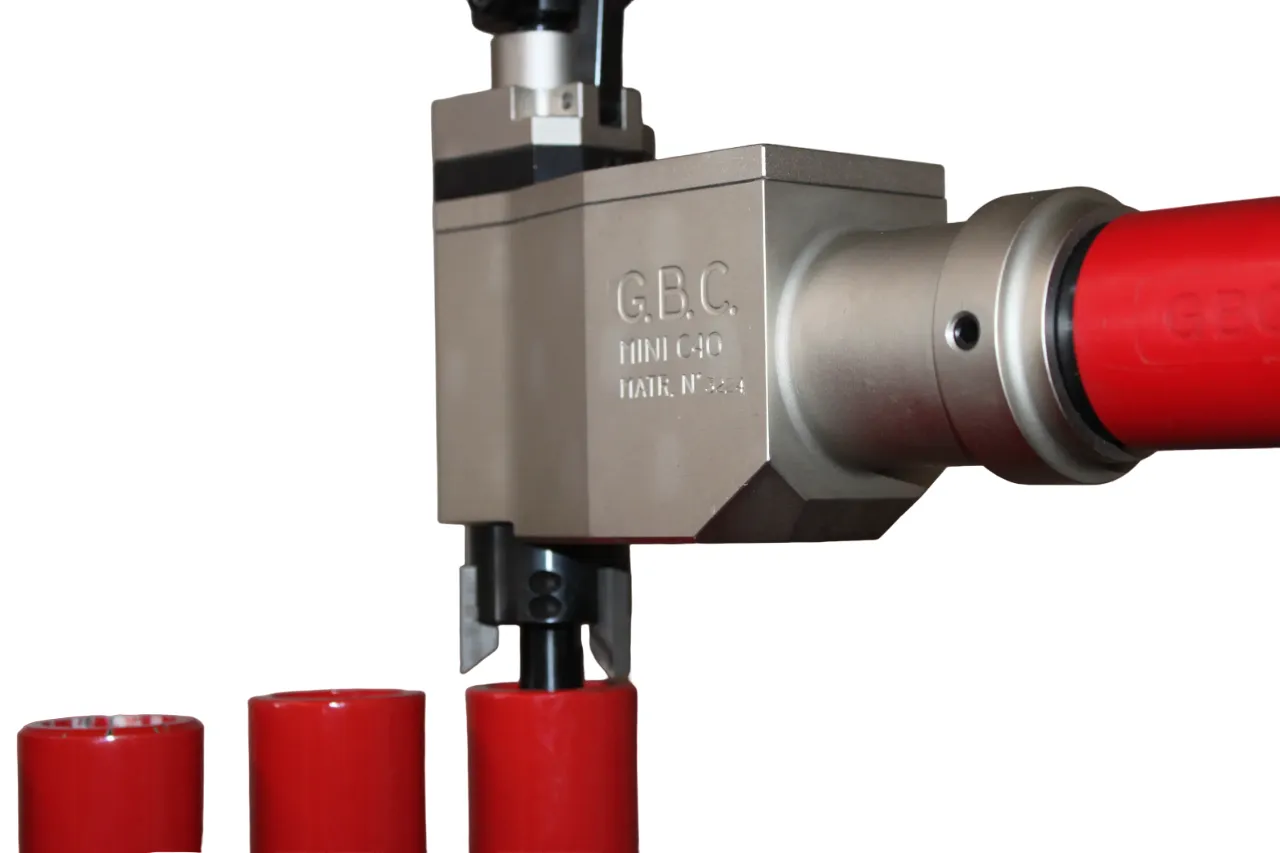

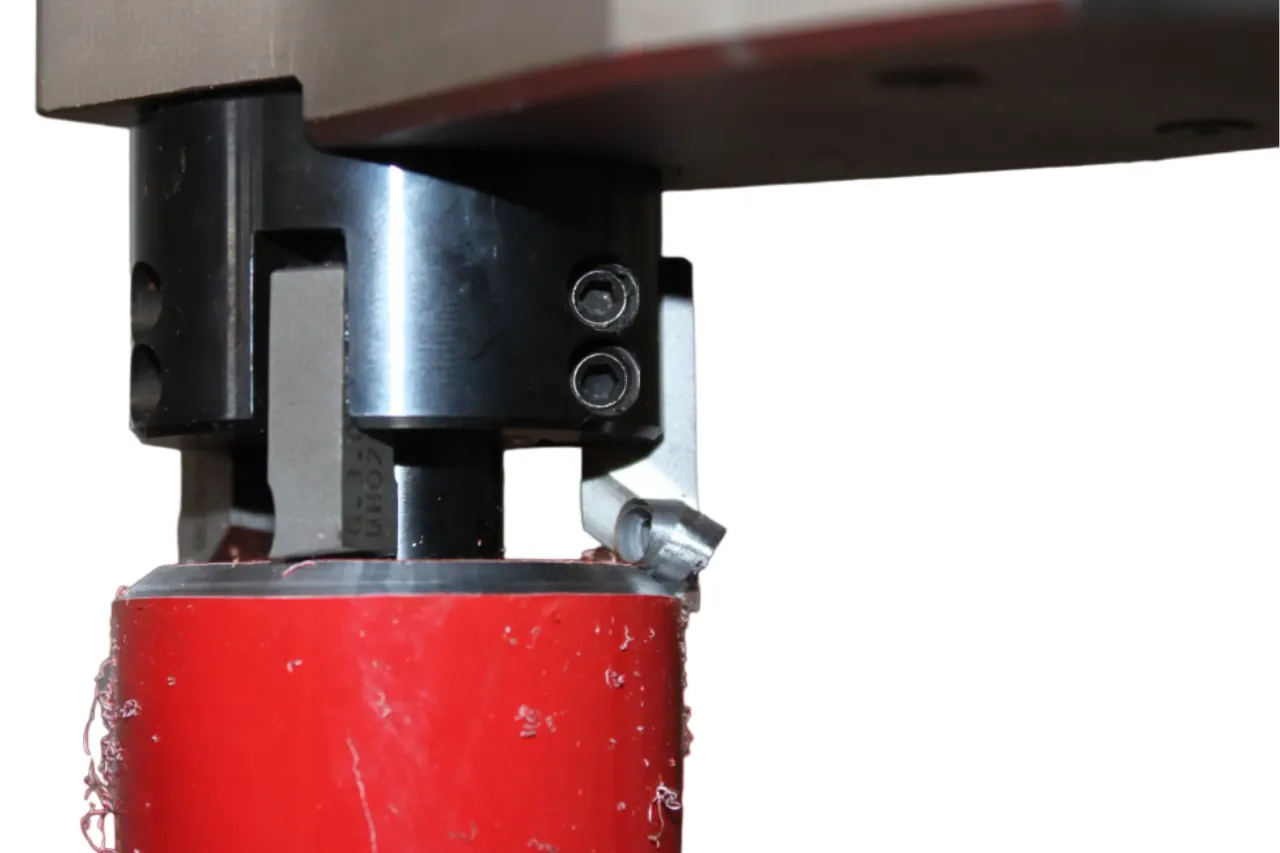

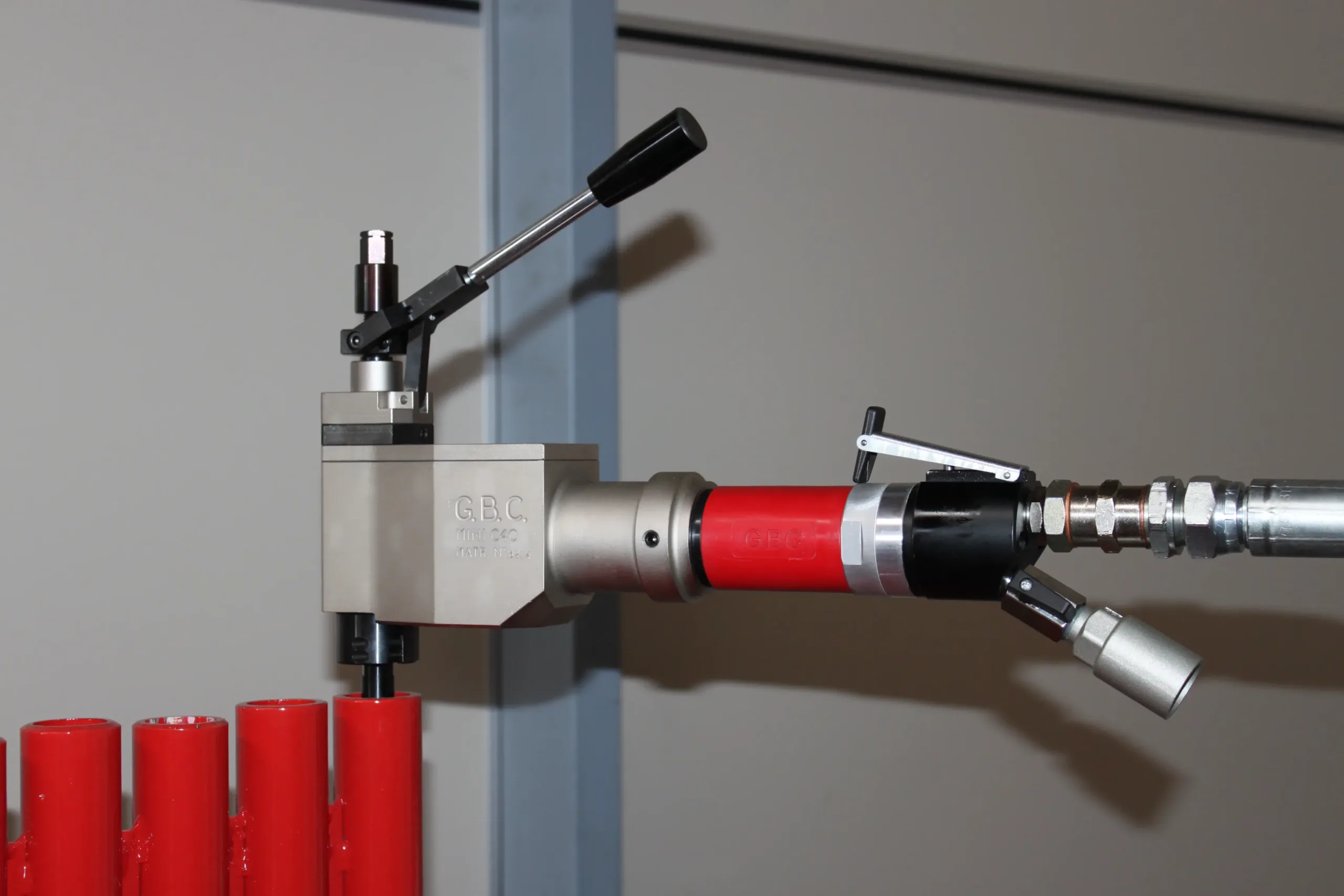

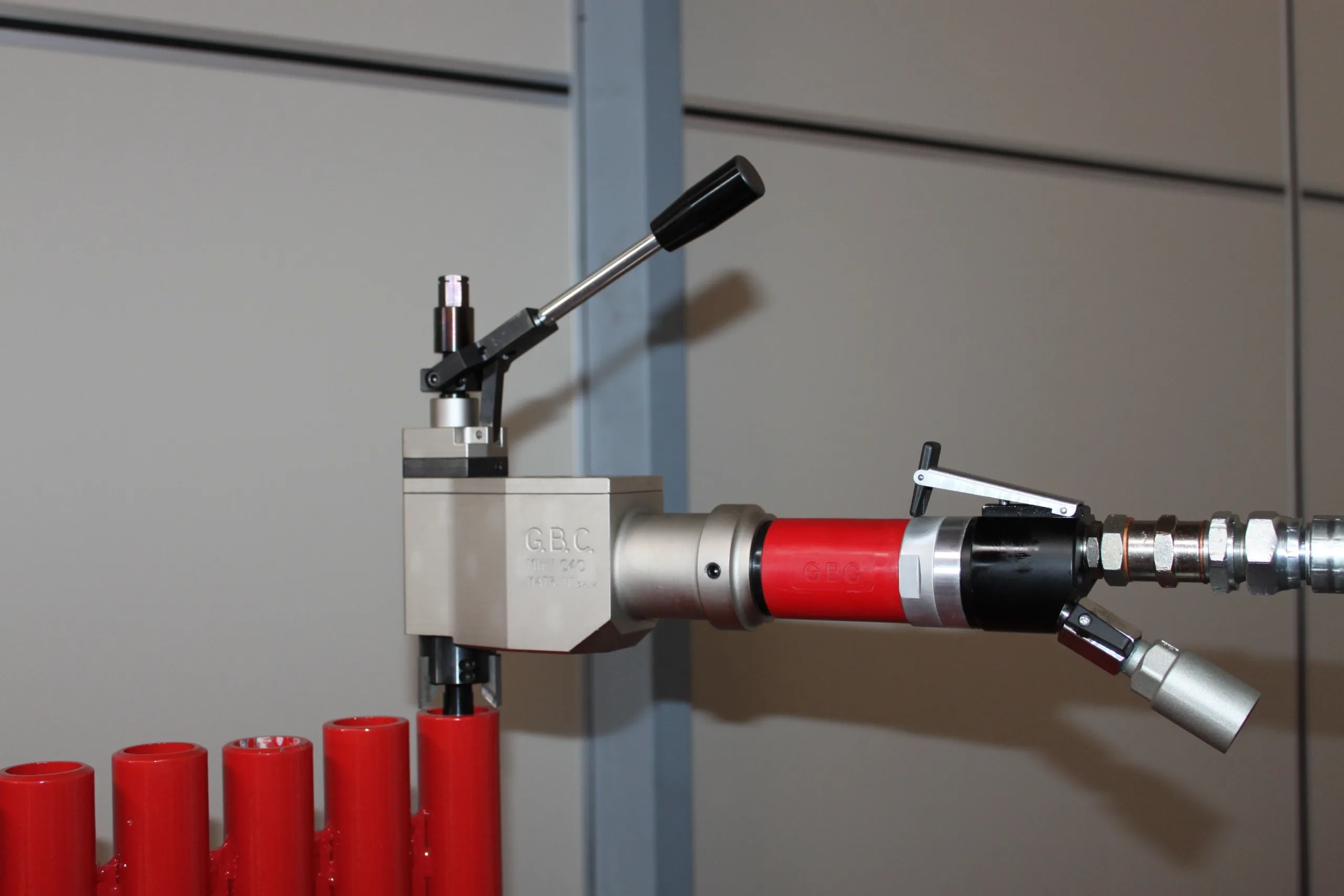

Mini C40 – Pictures
Mini C40 – Video
The Mini C40 pipe beveler has an extremely small machine body to allow the machine to be inserted into small spaces typical of the boilermaking sector.
Designed for heat exchangers and small systems, it is excellent for preparing the welding of thin pipes as well as for repetitive and accurate chamfers.
Contact us if you are interested in the Mini C40 pipe beveler or would like to receive a free quote.
