Description
Portable pipe beveling machine MINI AUTO COMPACT
Range Øi 20-42 mm (0,78″-1,65″)
The pipe beveling machine Mini Auto Compact is a light pneumatic pipe beveling machine, compact and fully automatic, recommended for repetitive beveling procedures on big heater exchangers.
The machine can execute perfect and precise facing of the tubes, the removal of welding beads and preparation of the tube sheet.
The pipe beveling machine Mini Auto Compact has an adjustable automatic feeding and it’s equipped with an adjustable automatic end stop with tight tolerance for a precise and consistent finishing.
MACHINE FEATURES
RANGE:
Pipe beveling machine for pipes 20 – 39 mm ø ID (optional up to 12,4 mm).
FUNCTIONS:
Bevelling, facing, counterboring. Automatic end stop.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Pneumatic.
AUTOMATIC END STOP:
Adjustable.
CHUCK:
With 4 seats for tools.
FEEDING:
Automatic.

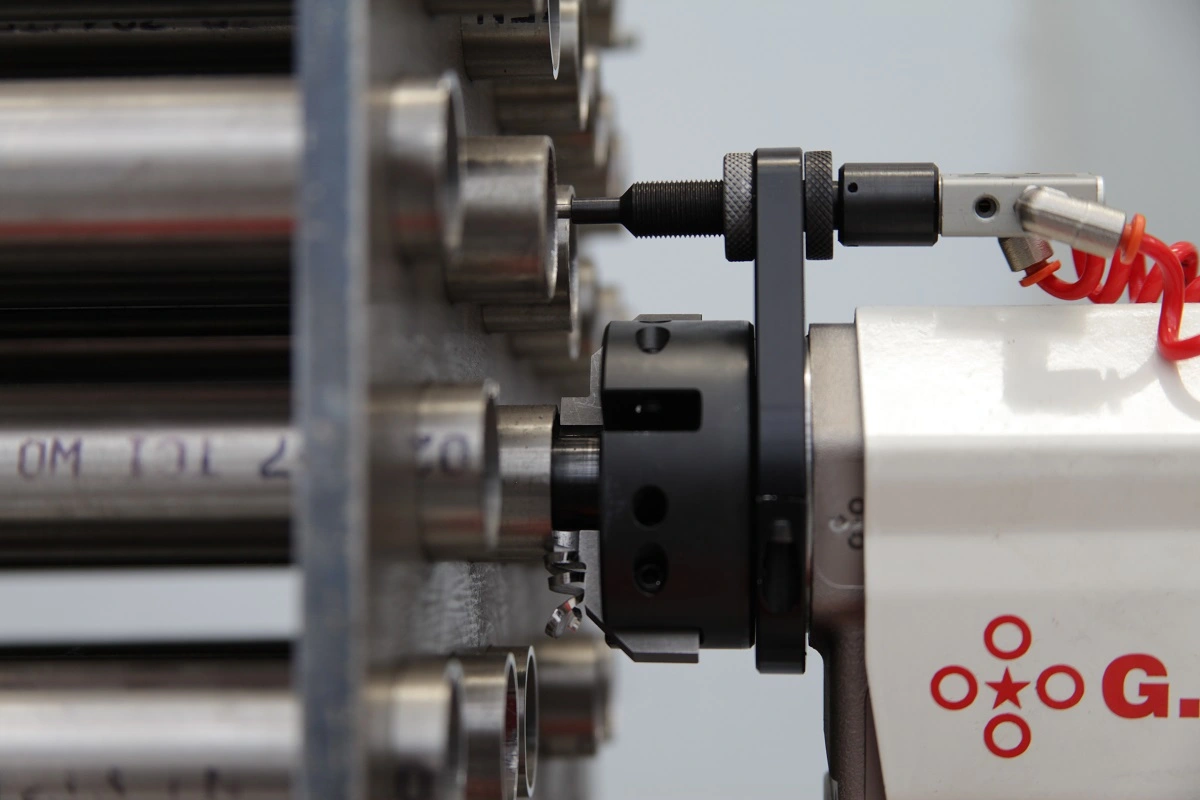

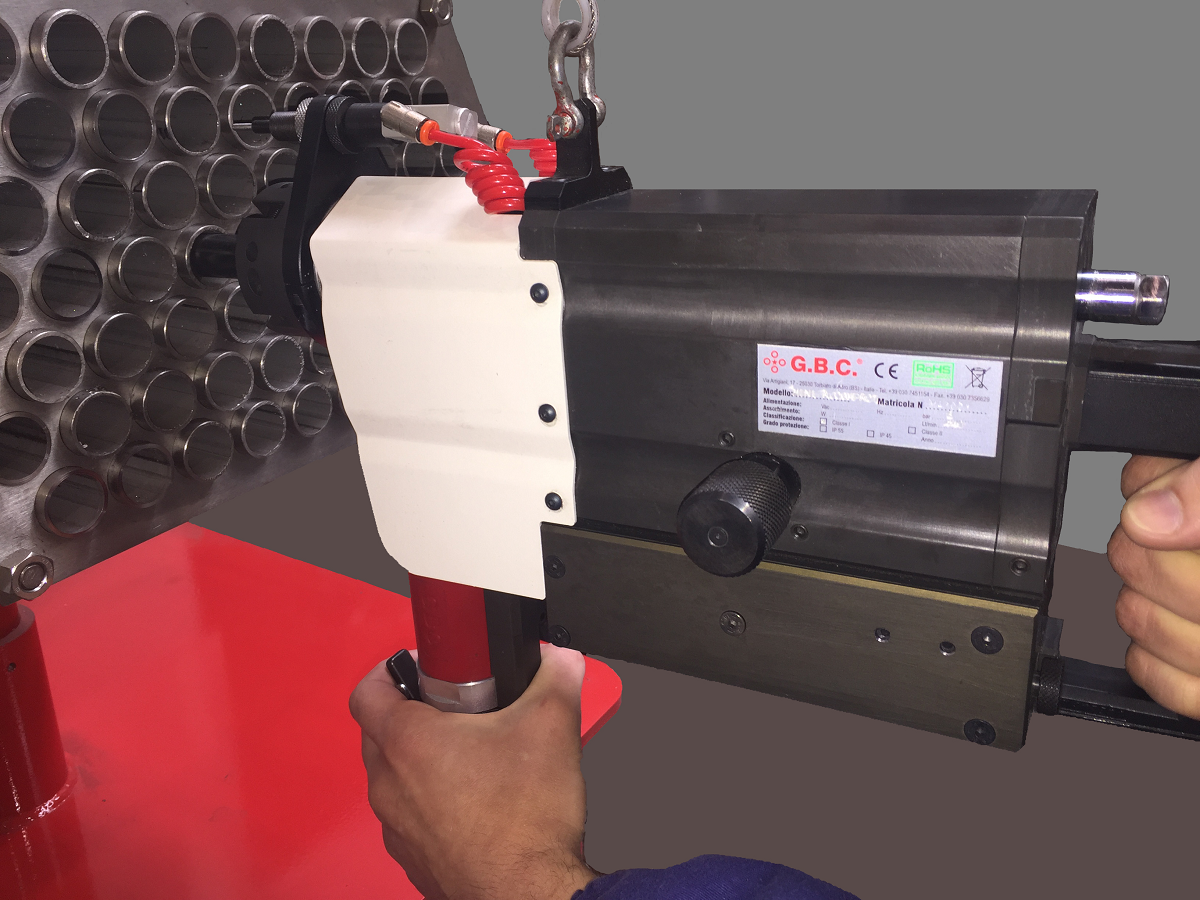

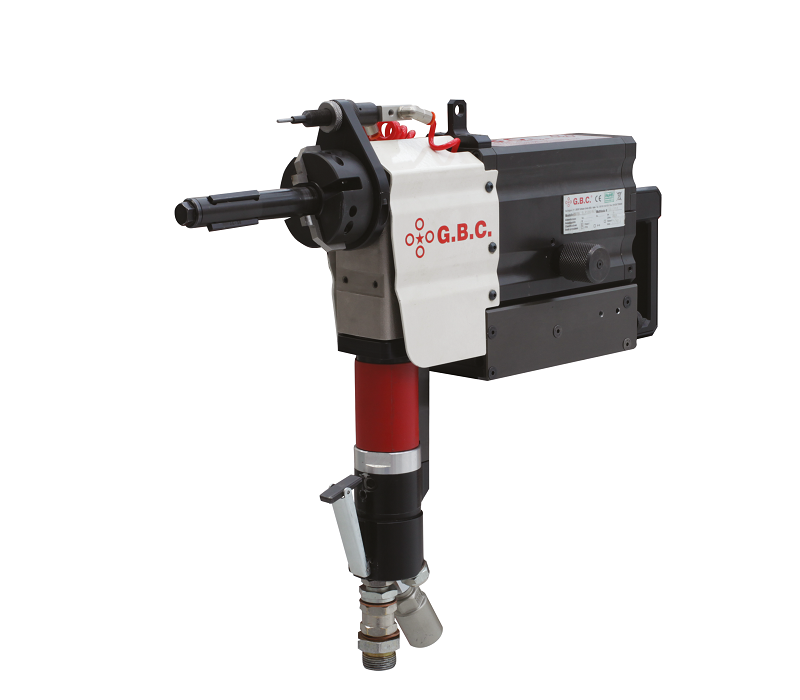

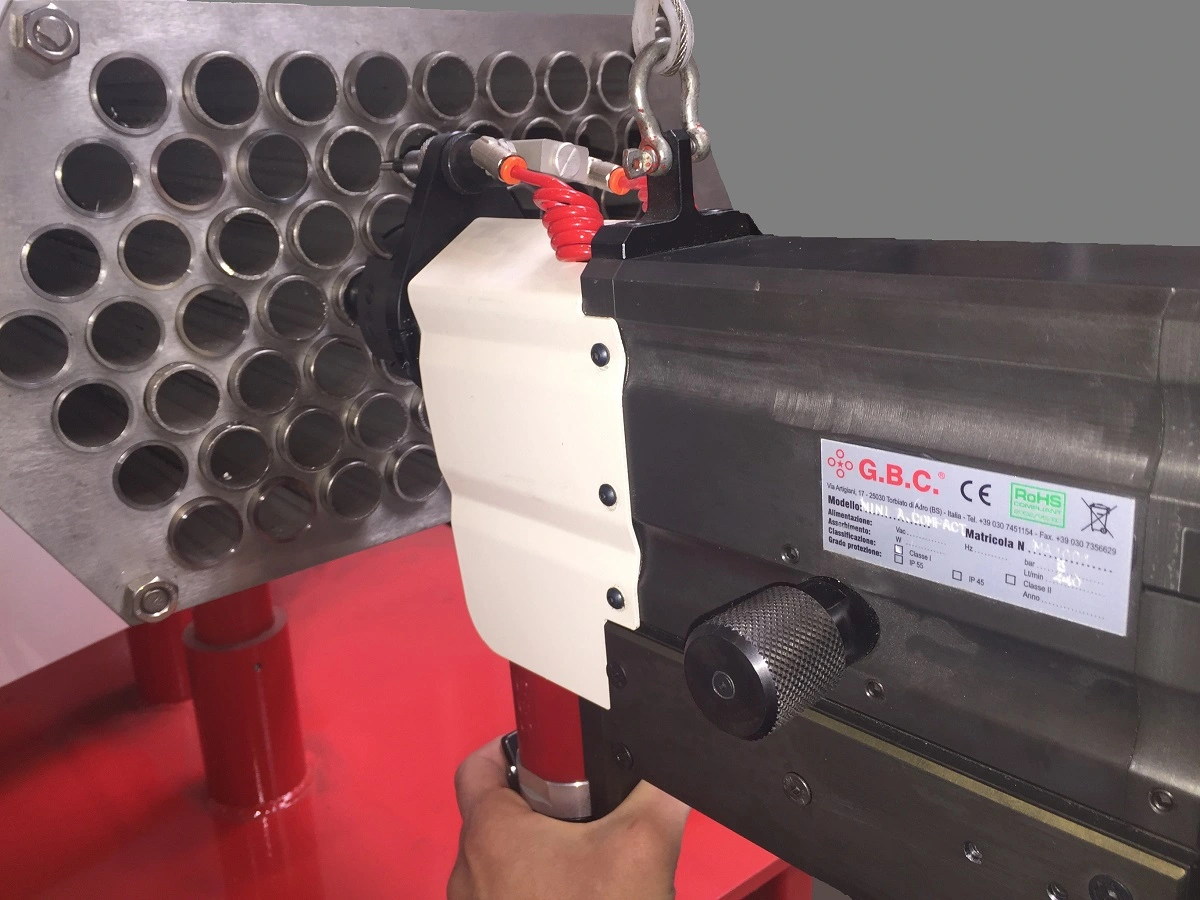

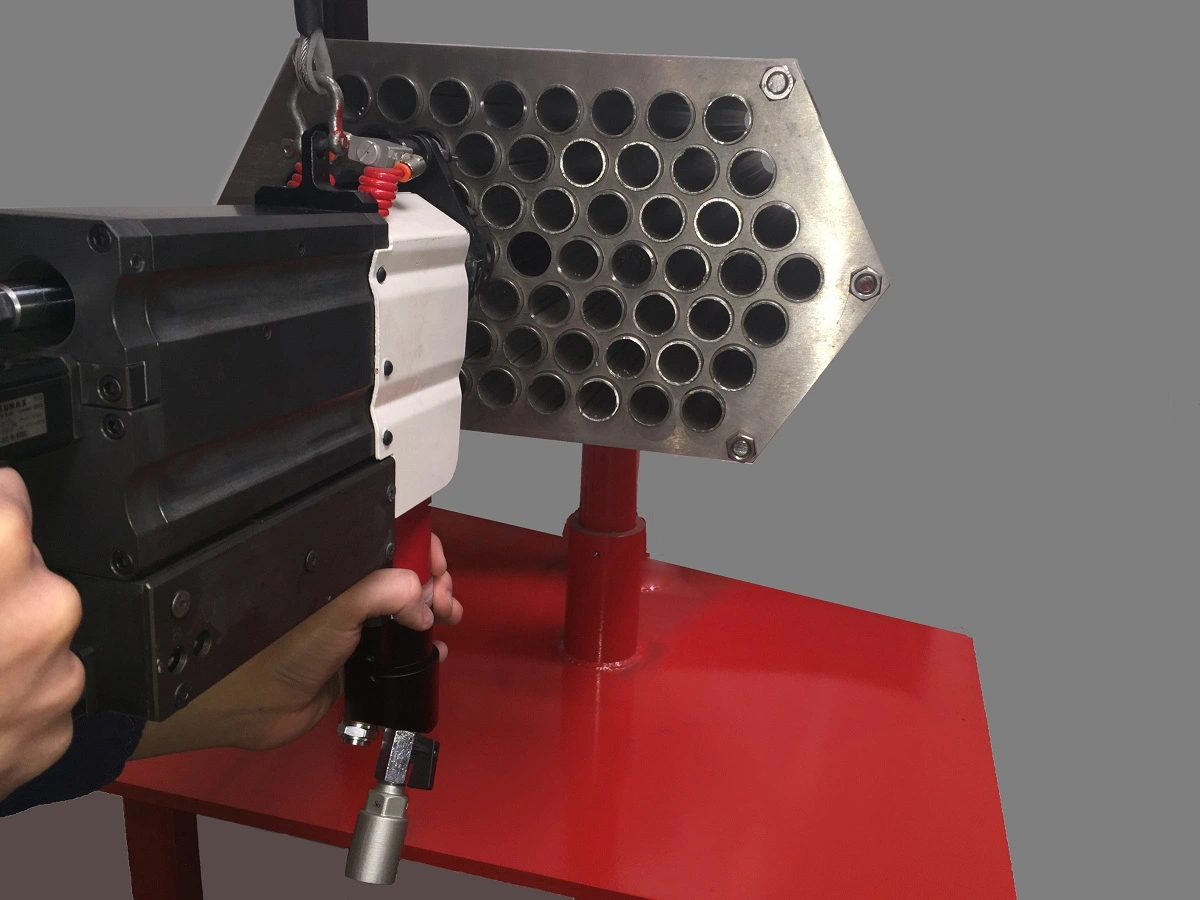

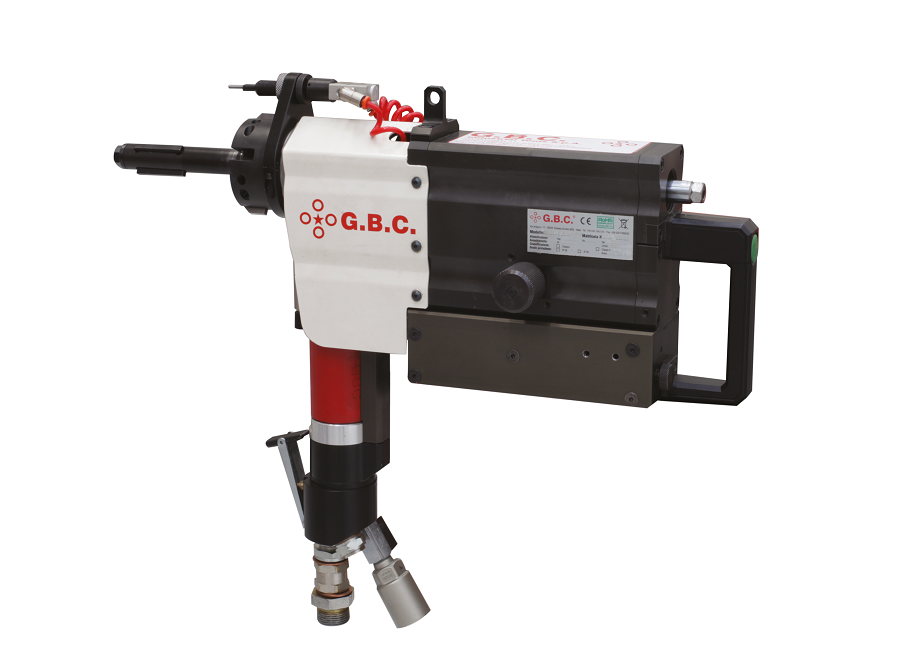

Mini Auto Compact – Pictures
Mini Auto Compact – Video
The Mini Auto Compact pipe beveling machine is very fast because it is completely automatic and is activated with a single command. The Mini Auto Compact pipe beveler can be equipped with optional reduced shaft sets for processing pipes with an internal diameter range of 12.5-21 mm.
The Mini Auto Compact is an excellent pipe milling machine for the preparation of welding procedures, it has a depth sensor that allows you to obtain identical and precise series processing and is also equipped with a balancer hook.
