Description
Flange facing and grooving machine SPIDER 12_70
Range Ø 304,8-1778 mm (12”-70”)
The flange facing machine Spider 12_70 is a machine conceived specifically for flange facing and grooving applications with a working process assisted by an onboard software that can calculate the initial setting position and carries out the complete working cycle.

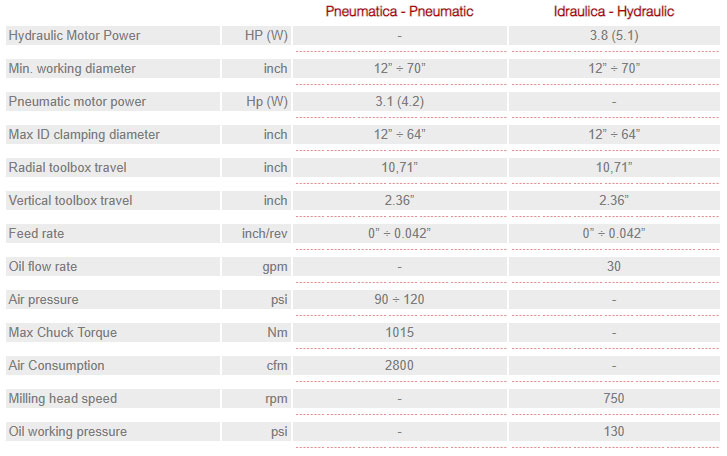

MACHINE FEATURES
RANGE:
Flanges Ø 304.8-1778 (12”-70”).
FUNCTIONS:
Flange Facing:

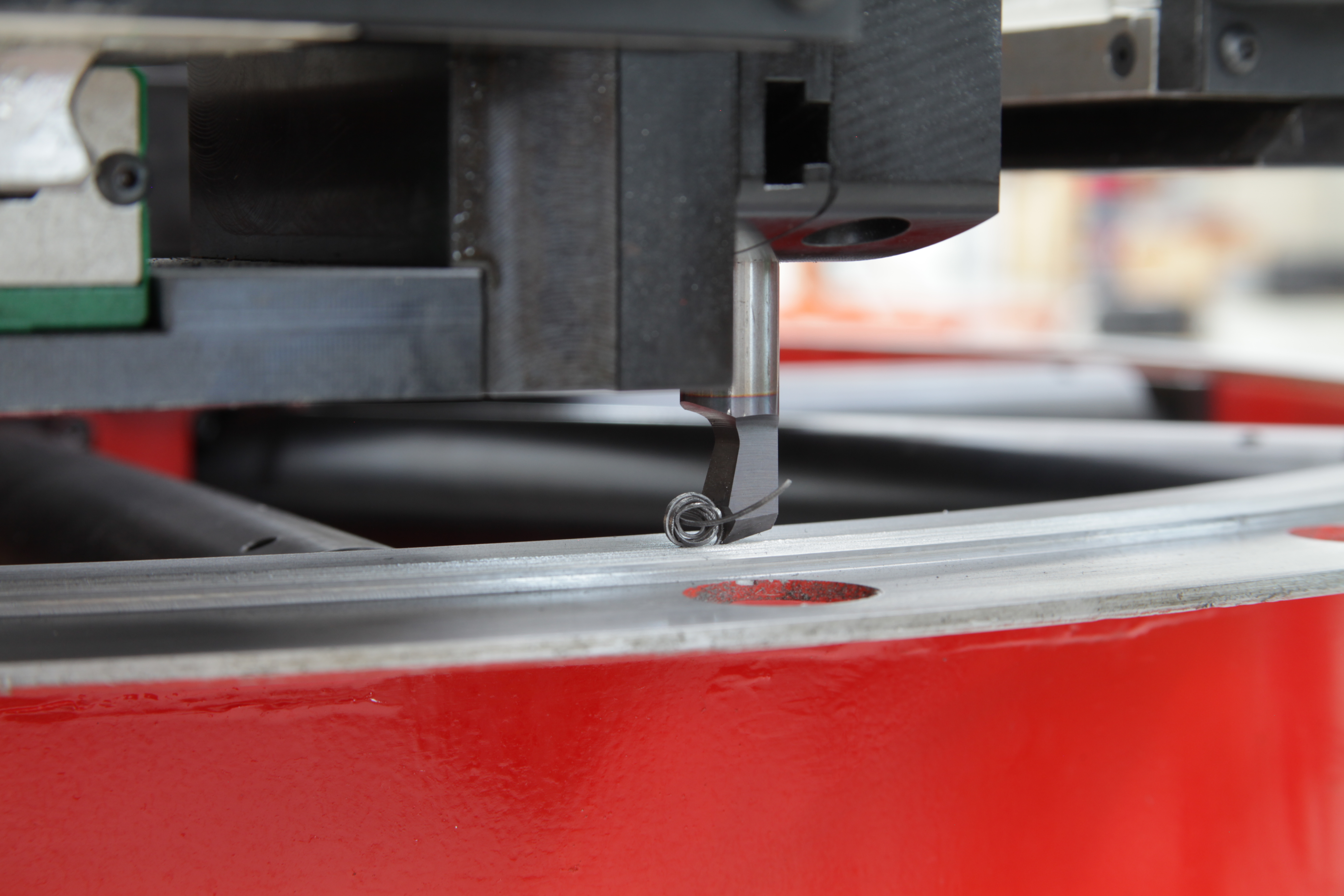

– By HSS Tool (Standard Configuration);

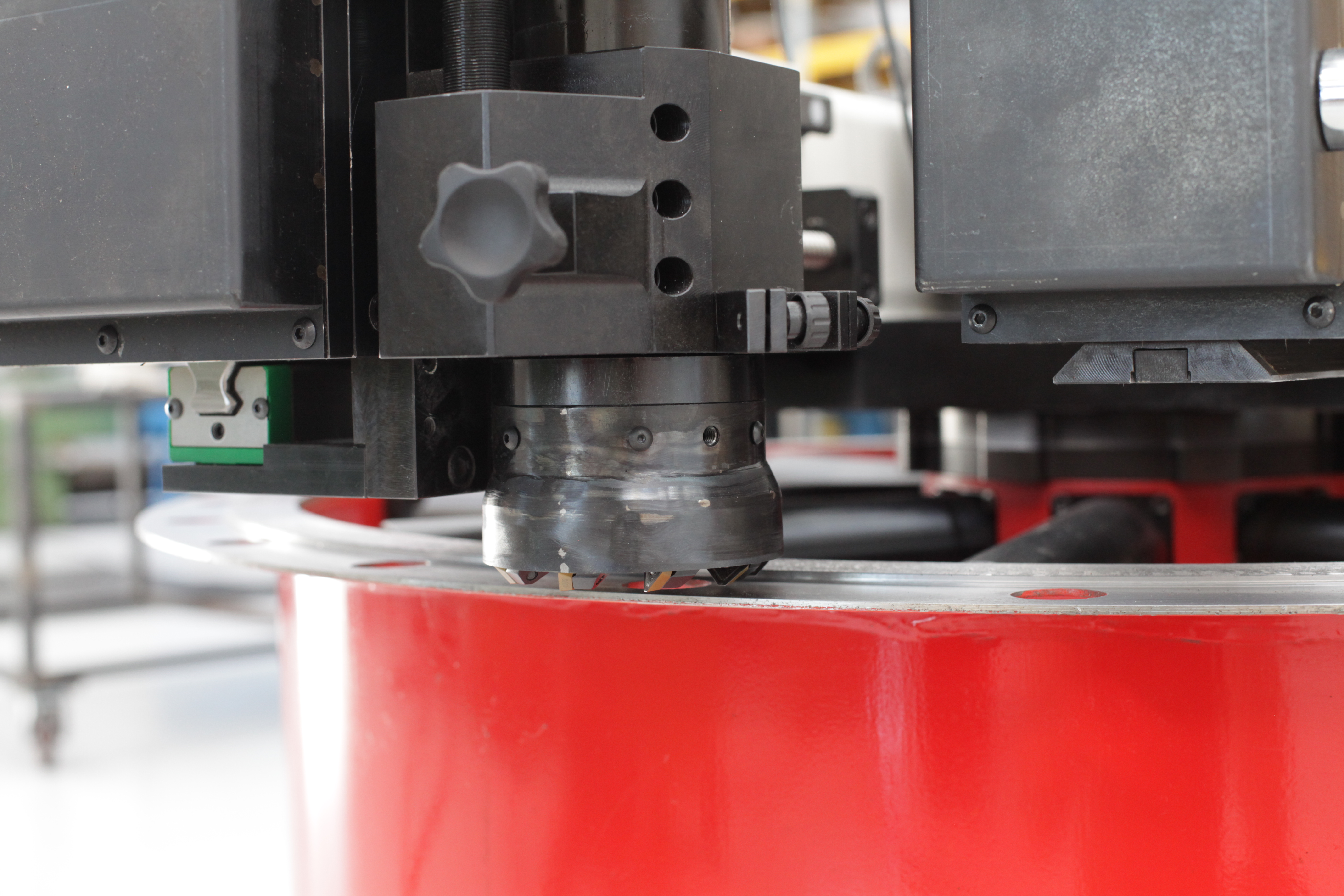

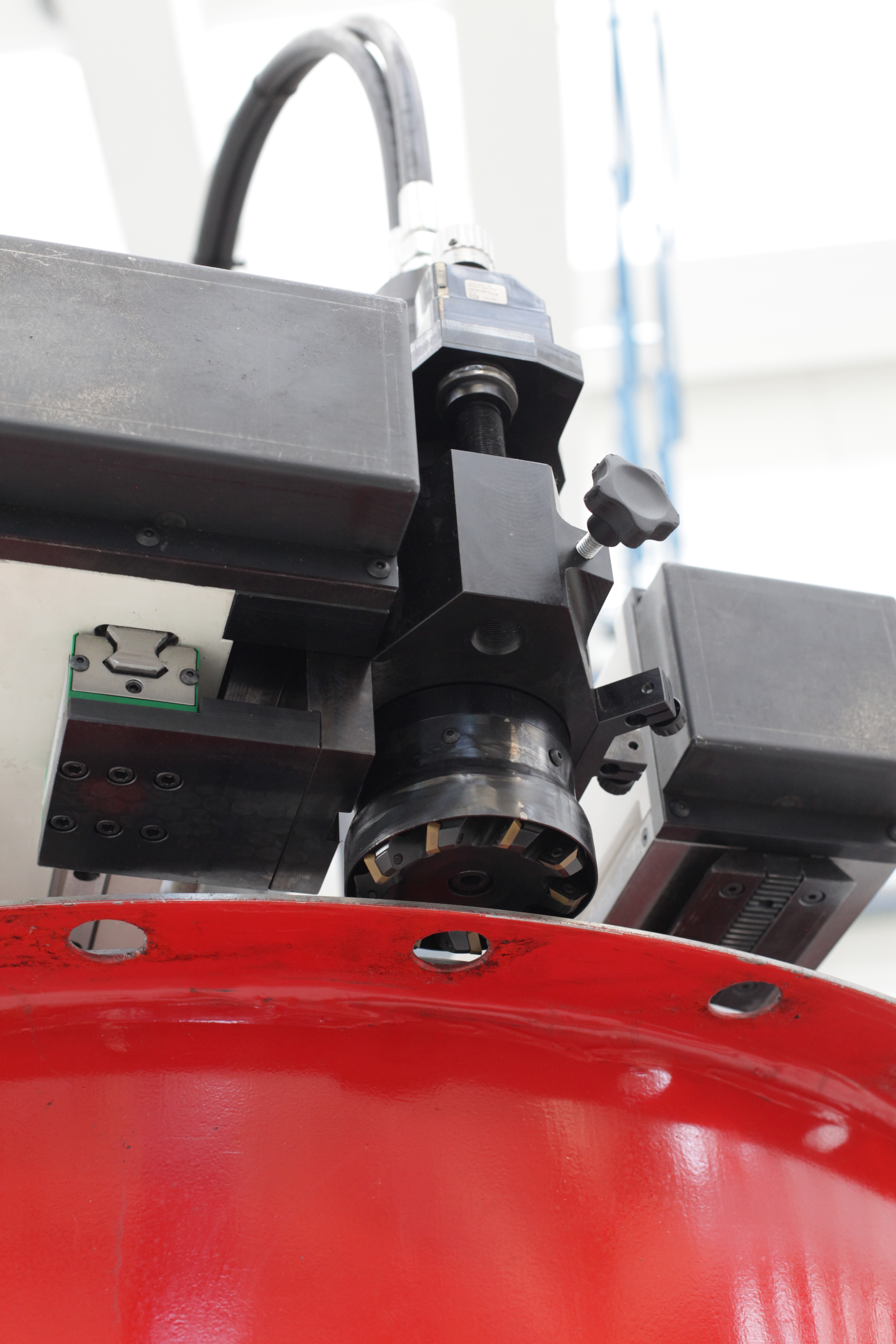

– By Face Mill (Optional) with inserts and counterweight.
MATERIALS:
Carbon steel, stainless steel, duplex, inconel, others.
POWER:
Hydraulic, Pneumatic.
NOTE:
Self-centering locking device and parameters setting through software.

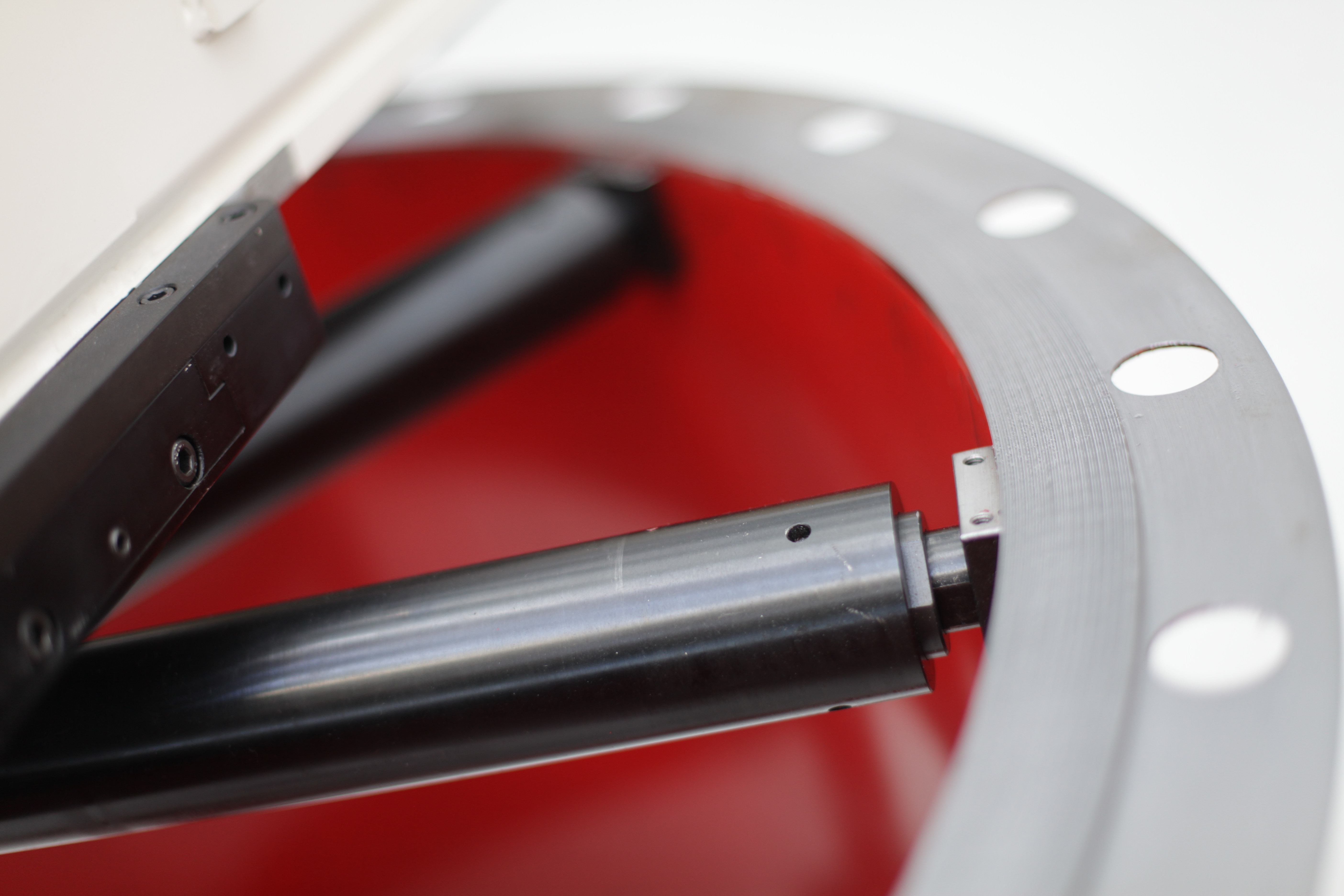

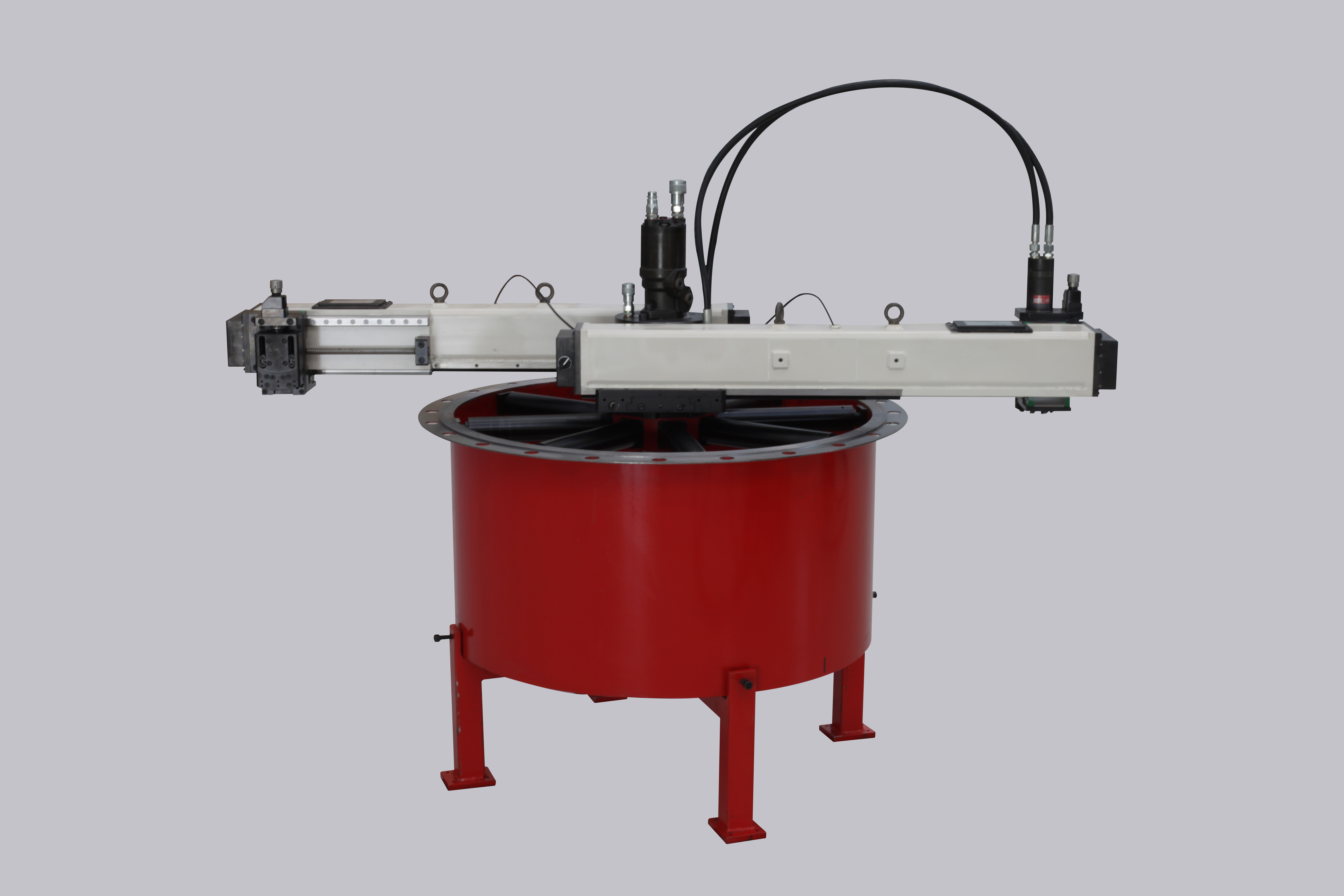

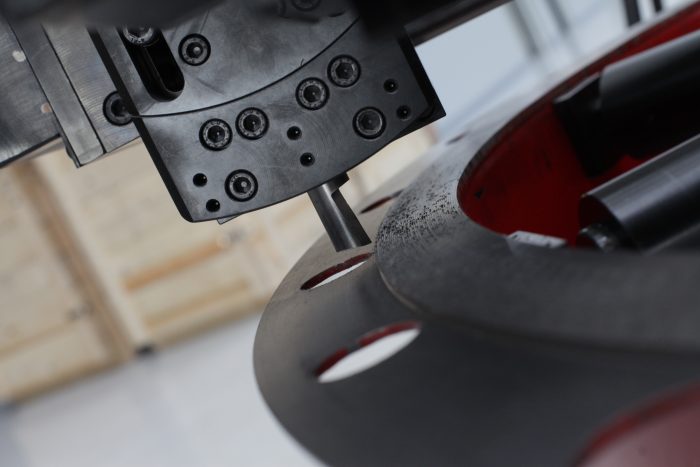

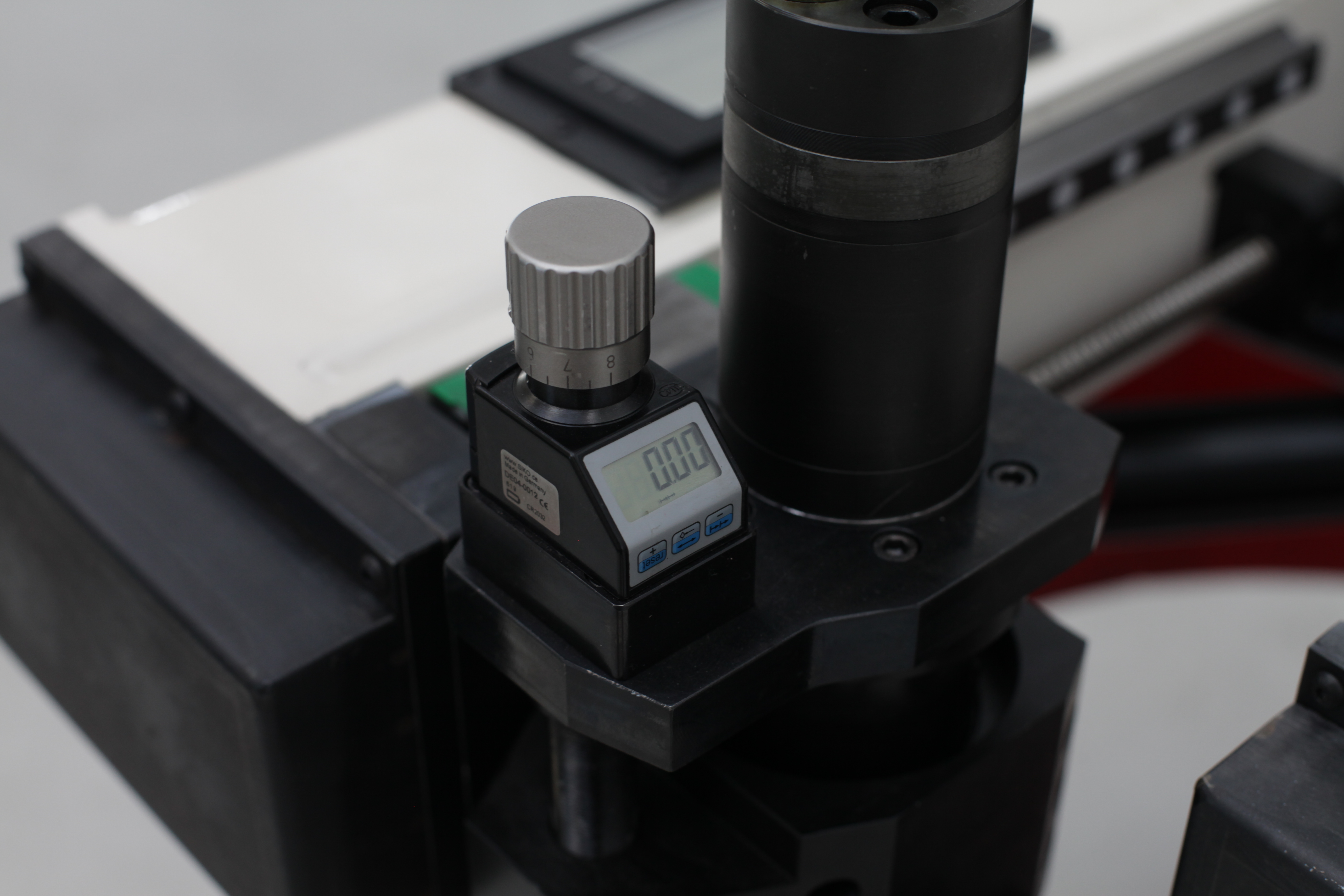

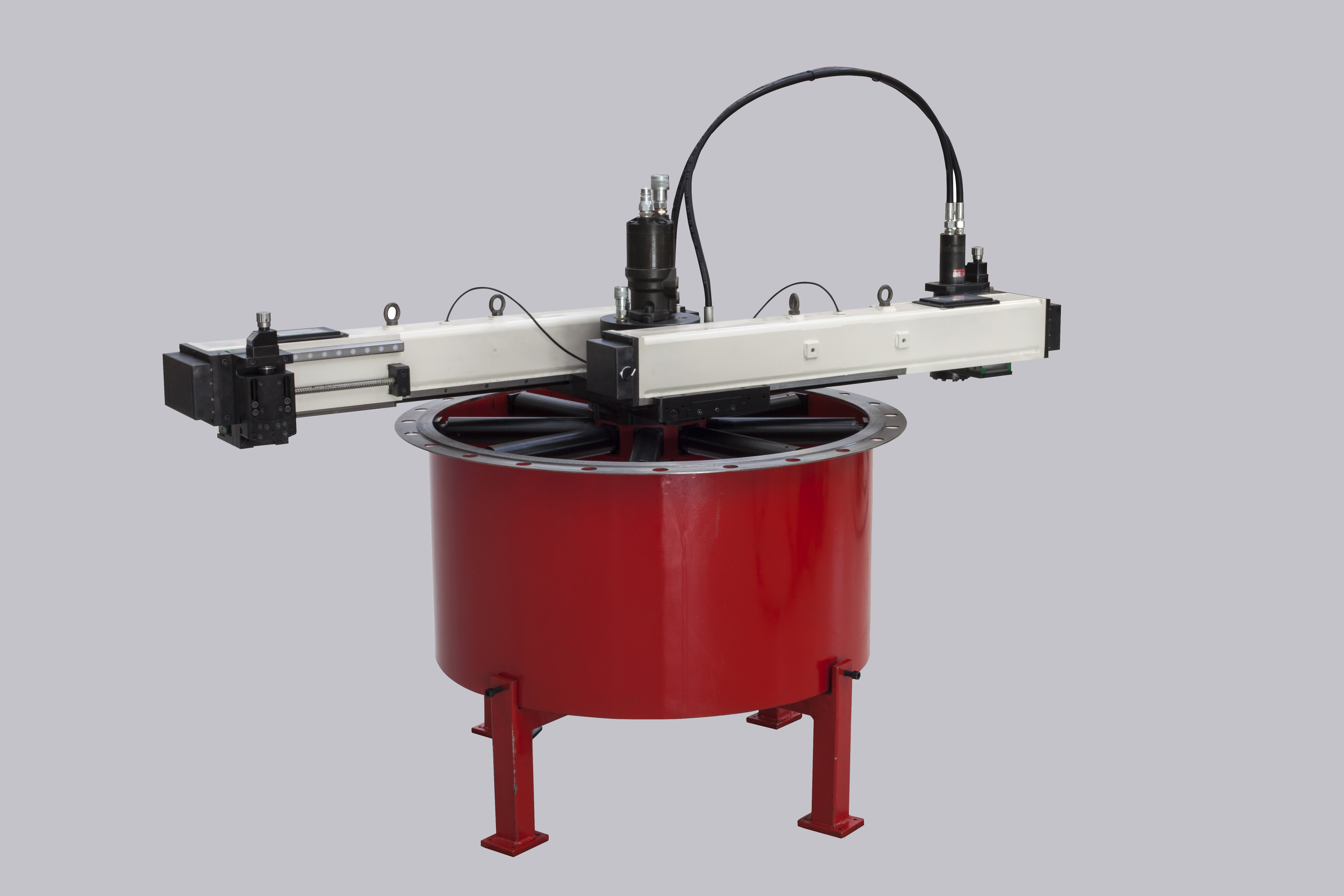

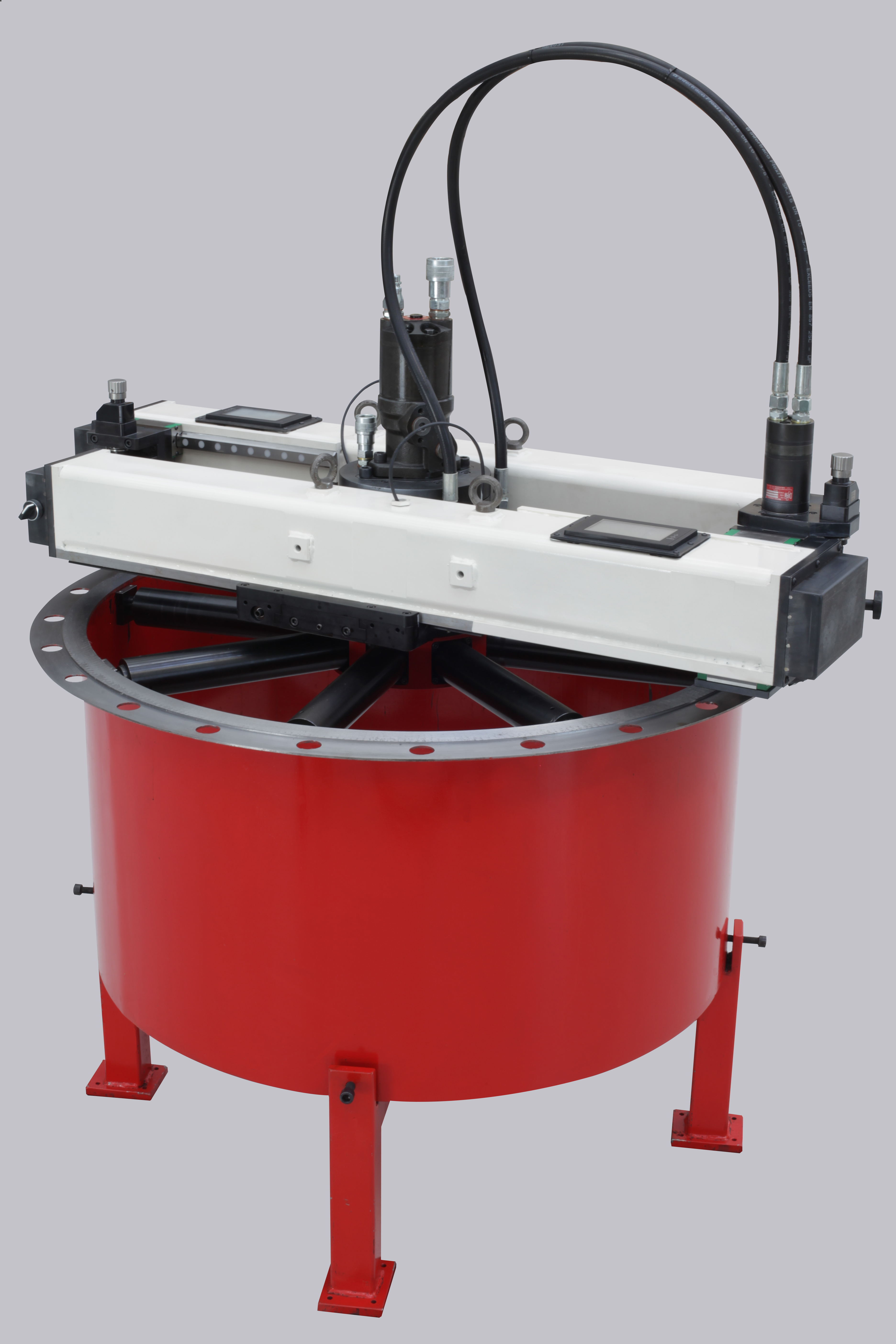

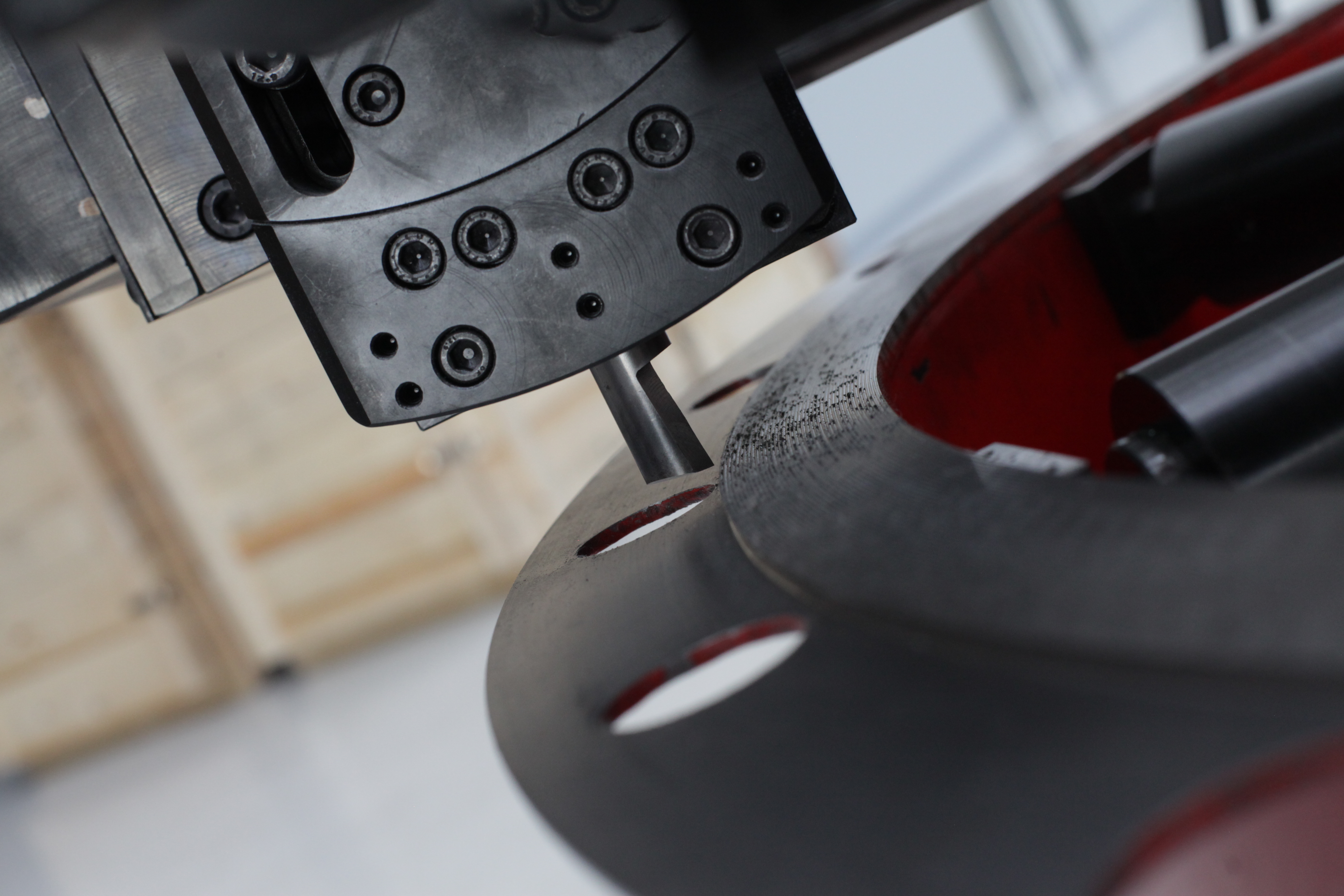

SPIDER 12_70 – Pictures
SPIDER 12_70 – Video
The Spider 12_70 flange machine is designed for operations to restore the scoring of the sealing surface of the gaskets of small damaged flanges.

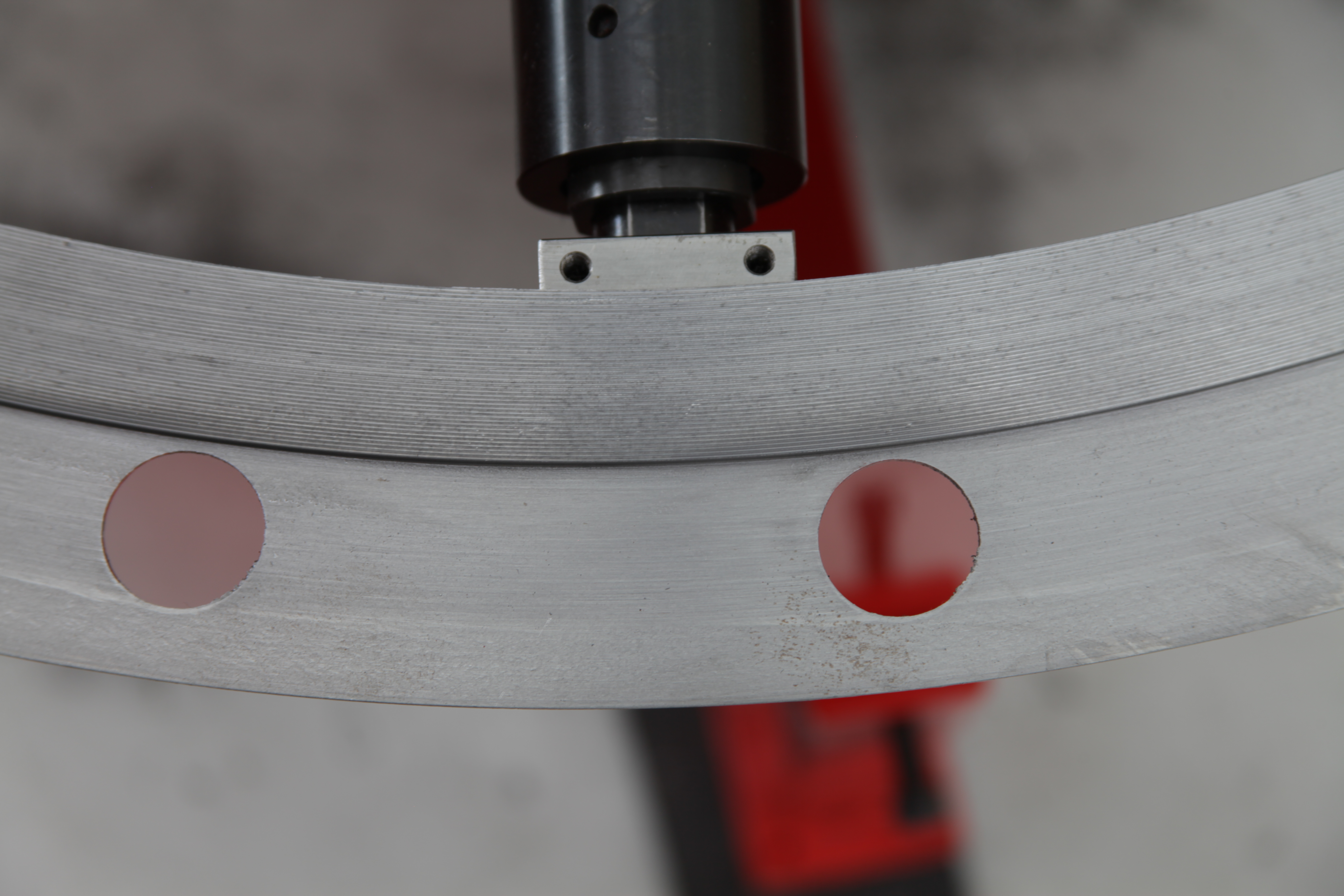

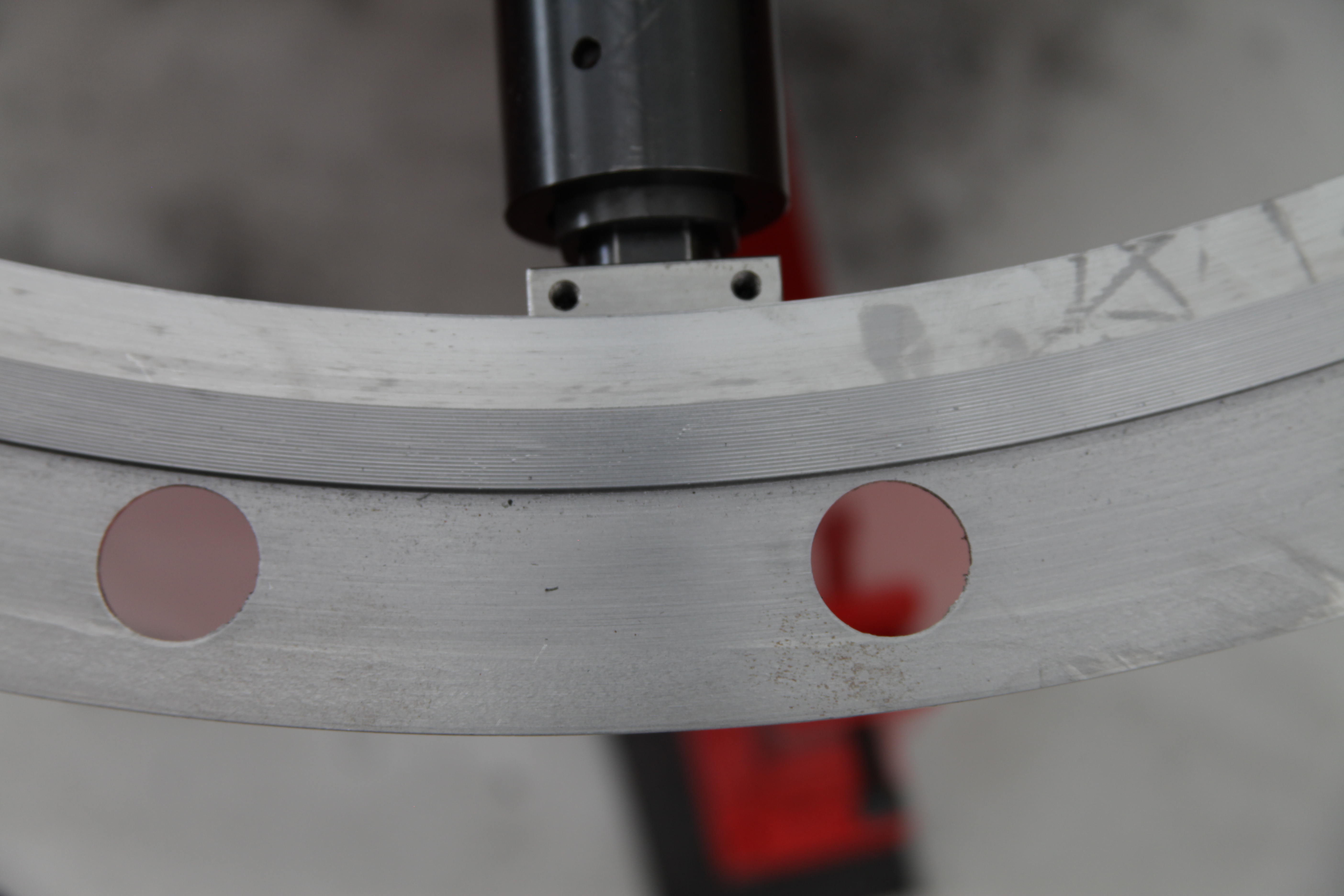

It performs restorations of phonograph or spiral scratches.
It is used in the hydraulic sector and in plant engineering for the transport of food, medical and gas fluids, but it is suitable for all uses where there are flanges and is capable of leveling thanks to the appropriate cylindrical section tools.
The power supply of this flange machine is hybrid, either hydraulic+electric or pneumatic+electric.
On a technological level, it boasts an on-board computer where the processing, the finish you want to obtain and the details of the flange are preset, making the entire process controllable and precise.
Contact us if you are interested in the Spider 12_70 Flange facing and grooving machine or would like to receive a free quote.
